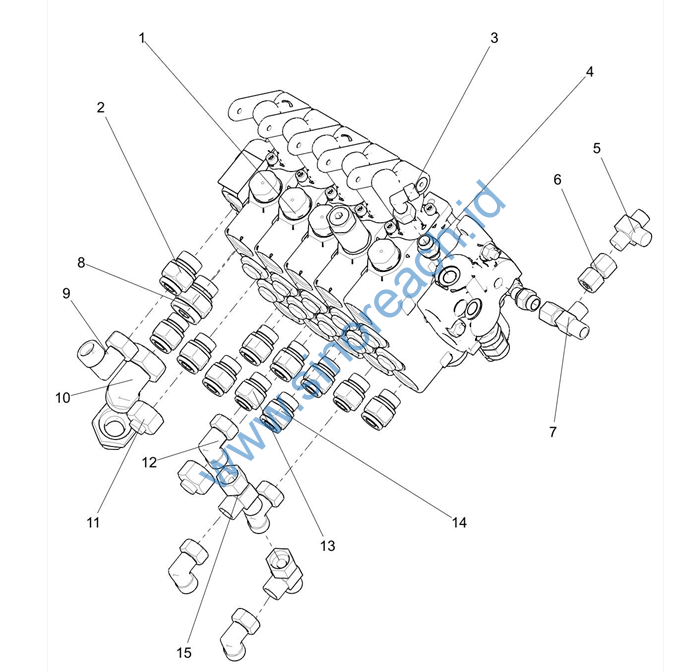

1 803090063 右多路阀 VALVE-RIGHT
2 803164300 接头 JOINT
3 803171722 接头 JOINT
4 803190999 接头 JOINT
5 803192992 梭阀 VALVE
6 803171907 接头 JOINT
7 803104594 接头 JOINT
8 803191091 接头 JOINT
9 803103775 接头 JOINT
10 803173684 接头 JOINT
11 803132119 堵头 PLUG
12 803107607 接头 JOINT
13 803164255 接头 JOINT
14 803112967 接头 JOINT
15 803105415 接头 JOINT

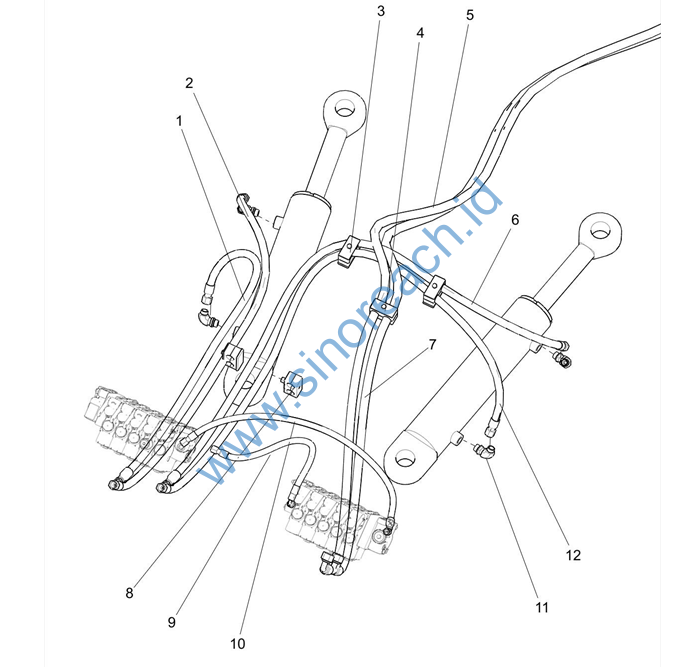

1 803385806 软管总成 HOSE ASSY 2 803385810 软管总成 HOSE ASSY
3 803163327 管夹 CLAMP
4 803167889 管夹 CLAMP
5 803180794 软管总成 HOSE ASSY 6 803392344 软管总成 HOSE ASSY
7 803180793 软管总成 HOSE ASSY 8 803411834 管夹 CLAMP 9 803198695 软管总成 HOSE ASSY
10 803409442 软管总成 HOSE ASSY 11 803412916 接头 JOINT 12 803191227 软管总成 HOSE ASSY

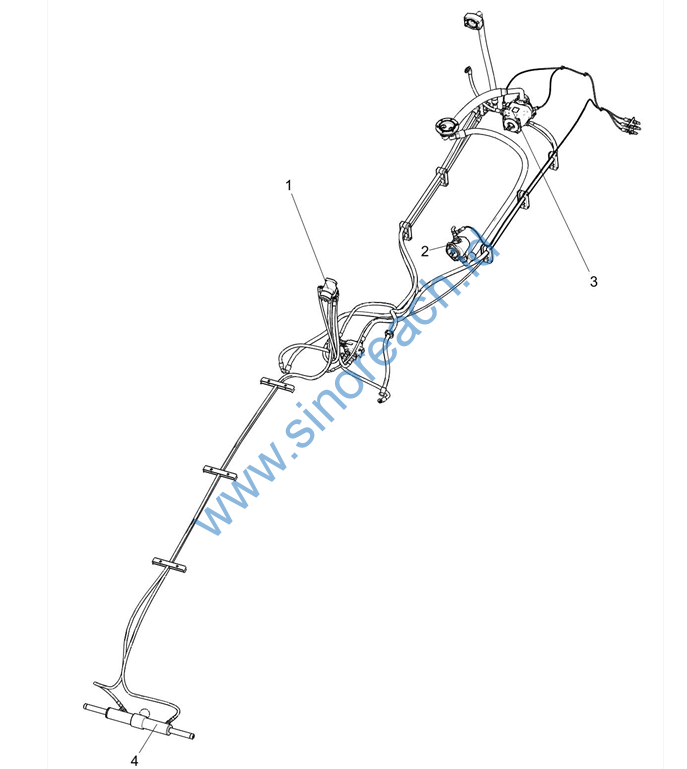

1 803098359 转向器 REDIRECTOR 1
2 803096197 齿轮泵 GEER PUMP 1
3 803082300 柱塞泵 PISTON PUMP 1
4
803087366
前轮转向油缸 FRONT WHEEL STEERING CYLINDER
1
XGYG07-192

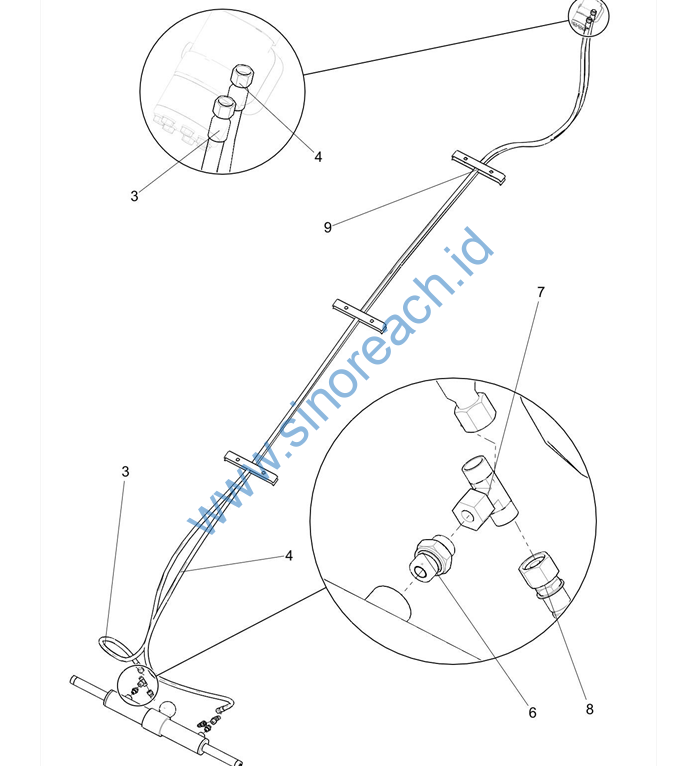

1 803420563 软管总成 HOSE ASSY 2 803420563 软管总成 HOSE ASSY
3
803087366
前轮转向油缸 FRONT WHEEL STEERING
CYLINDER
4 803103852 接头 JOINT
5 803184017 接头 JOINT
6 803183237 接头 JOINT

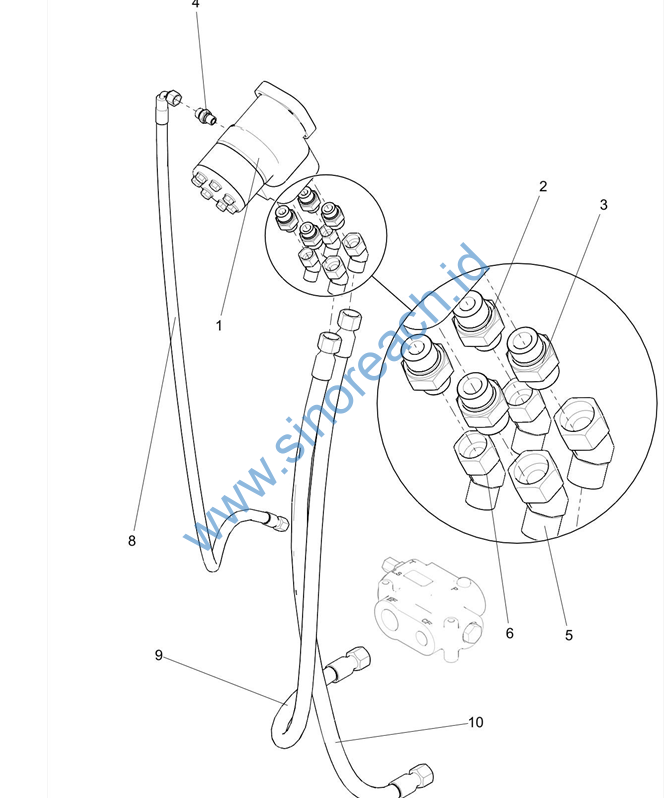

1 803098359 转向器 REDIRECTOR
2 803191976 接头 JOINT
3 803191496 接头 JOINT
4 803103817 接头 JOINT
5 803309219 接头 JOINT
6 803406986 接头 JOINT
7 803084381 优先阀 JOINT
8 803304403 软管总成 HOSE ASSY 9 803420523 软管总成 HOSE ASSY
10 803403139 软管总成 HOSE ASS`Y

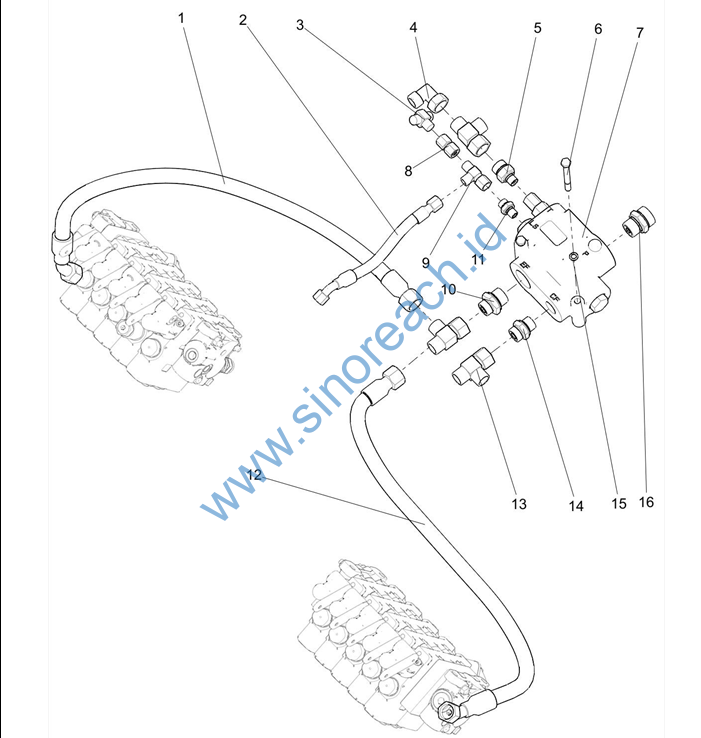

1 803381942 软管总成 HOSE ASSY 2 803420520 软管总成 HOSE ASSY
3 803192992 梭阀 VALVE
4 803103775 接头 JOINT
5 803108449 接头 JOINT
6 805046609 螺栓 M8×80 BOLT
7 803084381 优先阀 VALVE
8 803171907 接头 JOINT
9 803104594 接头 JOINT
10 803174472 接头 JOINT
11 803104484 接头 JOINT
12 803381942 软管总成 HOSE ASS`Y
13 803172037 接头 JOINT
14 803195587 接头 JOINT
15 805338259 垫圈 8 WASHER
16 803103321 接头 JOINT
1 803381942 软管总成 HOSE ASSY 2 803420520 软管总成 HOSE ASSY
3 803192992 梭阀 VALVE
4 803103775 接头 JOINT
5 803108449 接头 JOINT
6 805046609 螺栓 M8×80 BOLT
7 803084381 优先阀 VALVE
8 803171907 接头 JOINT
9 803104594 接头 JOINT
10 803174472 接头 JOINT
11 803104484 接头 JOINT
12 803381942 软管总成 HOSE ASS`Y
13 803172037 接头 JOINT
14 803195587 接头 JOINT
15 805338259 垫圈 8 WASHER
16 803103321 接头 JOINT
1 803420498 软管总成 HOSE ASSY 2 803420498 软管总成 HOSE ASSY
3 803420500 软管总成 HOSE ASS`Y
4 805048372 螺栓 M8×85 BOLT
5 803275845 管夹 CLAMP
6 805338259 垫圈 8 WASHER
7 803163336 管夹 CLAMP
8 803163385 管夹 CLAMP

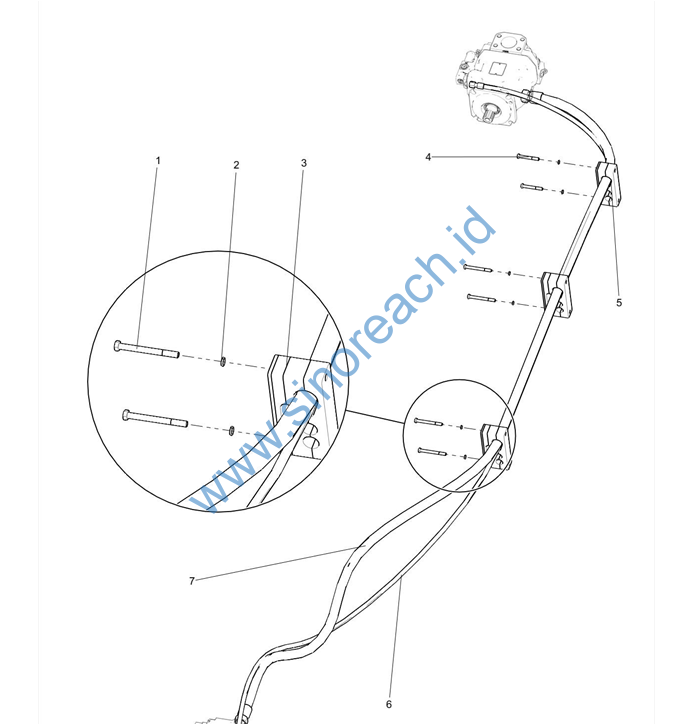

1 805048372 螺栓 M8×85 BOLT
2 805338259 垫圈 8 WASHER
3 803275847 管夹 CLAMP
4 805046608 螺栓 M8×65 BOLT
5 803275846 管夹 CLAMP
6 803420496 软管总成 HOSE ASSY 7 803420518 软管总成 HOSE ASSY
