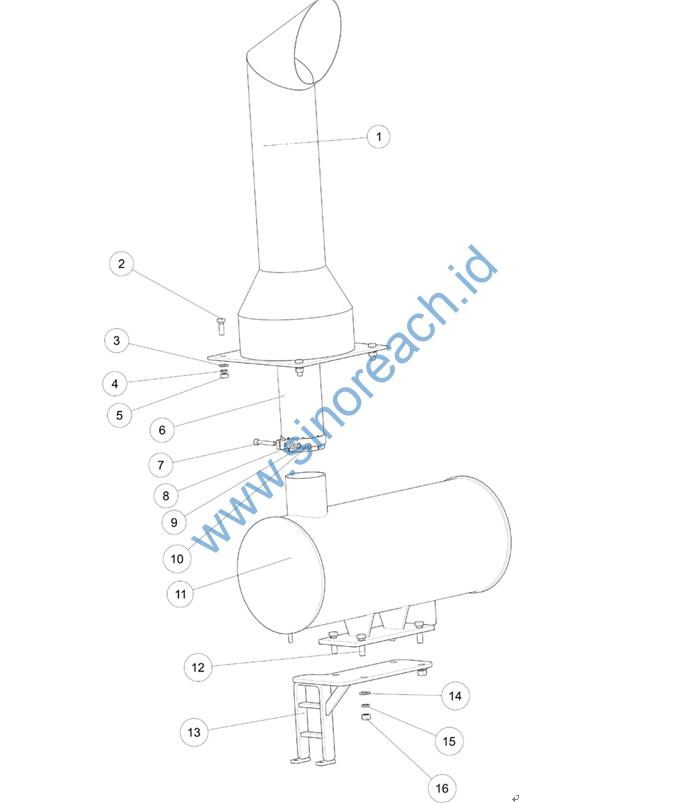

1 380900985 排气管 EXHAUST PIPE
2 805046416 螺栓 M10×30 BOLT M10×30
3 329900302 垫圈 10 WAS HER 10
4 805338260 垫圈 10 WAS HER 10
5 805201420 螺母 M10 NUT M10
6 380904867 接管 TUBE
7 805049185 螺栓 M8×55 BOLT M8×55
8 805338276 垫圈 8 WAS HER 8
9 805338259 垫圈 8 WAS HER 8
10 805238378 螺母 M8 NUT M8
11 380901027 消声器总成 MUFFLER
12 805006287 螺栓 M12×40 BOLT M12×40
13 380905700 消音器支架 MUFFLER BRACKET
14 329900303 垫圈 12 WAS HER 12
15 805338261 垫圈 12 WAS HER 12
16 805238372 螺母 M12 NUT M12
1 801907062 T 型平地机 CLIP
2 380901023 弯管 SYP HON
3 380900987 管夹 CLIP
4 805046523 螺栓 M8×80 BOLT M8×80
5 380904114 接管 TUBE
6 800157390 空气预滤器 PRE-AIR CLEANER
7 329900301 垫圈 WAS HER
8 805238378 螺母 M8 NUT M8
9 381100643 空滤固定管夹 AIR CLEANER CLIP
10 805046524 螺栓 M10×16 BOLT M10×16
11 329900302 垫圈 WAS HER
12 381100642 空滤器支架 AIR CLEANER
BRACKET
13 805238371 螺母 M10 NUT M10
14 805046541 螺栓 M10×80 BOLT M10×80
15 800101436 空气滤清器 AIR CLEANER
16 801907065 T 型平地机 CLIP

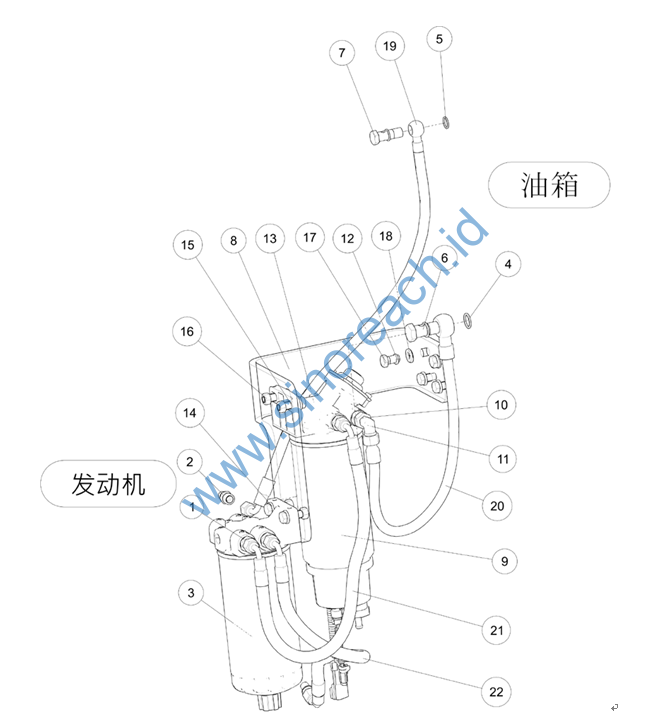

1 803104282 接头 JOINT
2 803103339 接头 JOINT
3 803400571 二级燃滤 SECOND FUEL FILTER
4 803166369 垫圈 18 WAS HER 18
5 805300001 垫圈 14 WAS HER 14
6 805000130 螺栓 M18× 1.5×40 BOLT M18×1.5×40
7 805047710 螺栓 M14×
1.5×40 BOLT M14×1.5×40
8 381100594 支架 BRACKET
9 803400570 一级燃滤 FIRST FUEL FILTER
10 803104916 接头 JOINT
11 803107607 接头 JOINT
12 805338260 垫圈 10 WAS HER 10
13 805046416 螺栓 M10×30 BOLT M10×30
14 329900302 加厚平垫圈 PLATE WASHER
15 805046528 螺栓 M10×35 BOLT M10×35
16 805238371 螺母 M10 NUT M10
17 805046525 螺栓 M10×20 BOLT M10×20
18 329900302 垫圈 10 WAS HER 10
19 380905702 钢丝外编织胶管总成 VITTA
20 380904856 钢丝外编制胶
管总成 VITTA
21 380400816 钢丝外编织胶
管总成 VITTA
22 380400816 钢丝外编织胶管总成 VITTA

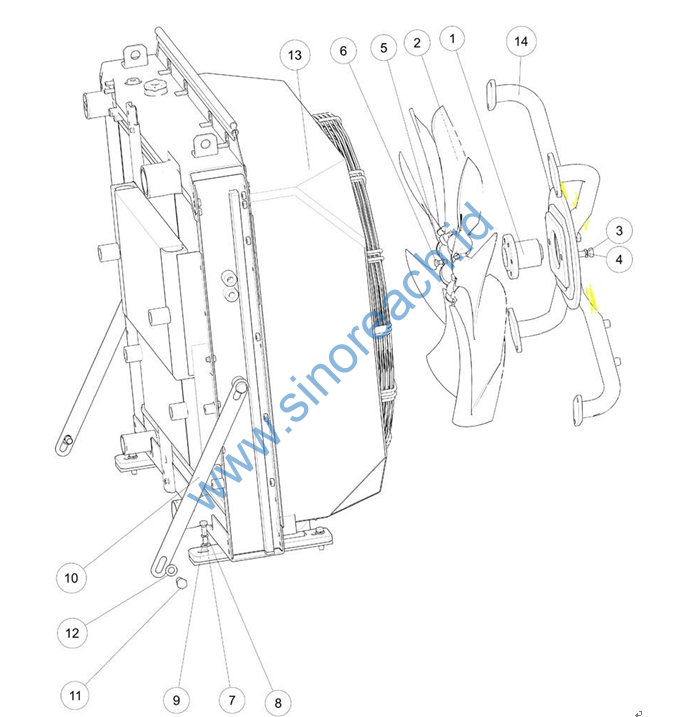

1 382300186 过渡盘 TRANSITION PLATE
2 800155645 φ840 吸风扇 FAN
3 805338262 垫圈 14 WASHER 14
4 805046563 螺栓 M14×
30 BOLT M14×30
5 329900296 垫圈 8 WASHER 8
6 805046805 螺栓 M8×20 BOLT M8×20
7 329900303 垫圈 12 WASHER 12
8 805338261 垫圈 12 WASHER 12
9 805046552 螺栓 M12×
50 BOLT M12×50
10 381100421 拉杆 REDI ATION LINK
11 805046570 螺栓 M16×
25 BOLT M16×25
12 805338284 垫圈 16 WASHER 16
13 803077507 散热器总成 REDI ATION
14 380904854 马达支架 MOTOR BRACKET

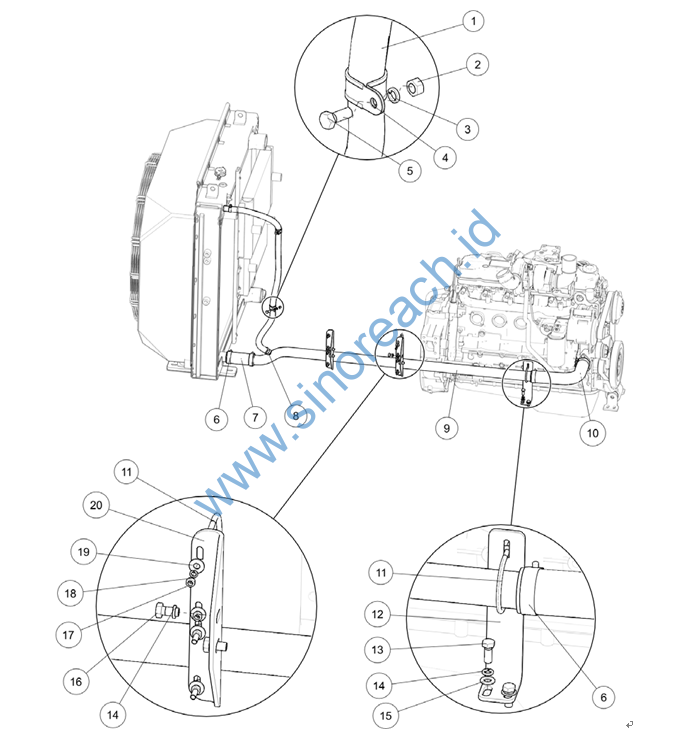

1 380906220 补水管 φ19×
1030 HUTCH WAT ER PIPE
2 805046477 螺母 M8 NUT M8
3 329900301 垫圈 8 WAS HER 8
4 803300172 卡套 Φ30 CLIP
5 805046507 螺栓 M8×20 BOLT M8×20
6 800151575 卡箍 CLIP
7 380900977 胶管φ49×
6-150 HOSE
8 805801461 喉箍 d32 HOOP
9 380904104 进水管 WATER INLET PIPE
10 381100412 发动机进水连
接弯管 WATER INLET PIPE
11 380700259 管卡 CLAMP
12 381100419 固定支架 BRACKET
13 805011330 螺栓 M10×25 BOLT M10×25
14 805338260 垫圈 10 WAS HER 10
15 329900302 垫圈 10 WAS HER 10
16 805046525 螺栓 M10×20 BOLT M10×20
17 805238370 螺母 M6 NUT M6
18 805338258 垫圈 6 WAS HER 6
19 381100418 垫片 MAT
20 380603056 水管固定板 WATER PIPE PLAT E

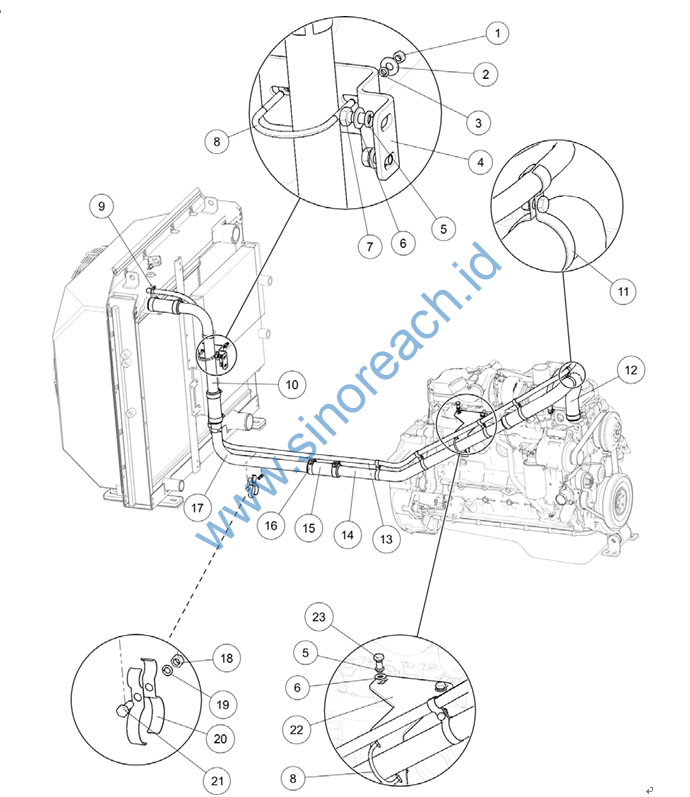

1 805238370 螺母 M6 NUT M6
2 381100418 垫片 MAT
3 805338258 垫圈 6 WAS HER 6
4 380905662 出水管固定支架 WATER PIPE PLAT E
5 805338260 垫圈 10 WAS HER 10
6 329900302 垫圈 10 WAS HER 10
7 805046525 螺栓 M10×20 BOLT M10×20
8 380700259 管卡 CLAMP
9 805801472 喉箍 d16 HOOP
10 380904860 发动机出水管
Ⅰ WATER OUTLET PIPE
11 380905890 支撑架 BRACKET
12 381100420 出水连接弯管 WATER OUT LET PIPE
13 380905888 出气管 φ10×
3400 OUT GAS PIPE
14 381100416 发动机出水管 WATER OUTLET PIPE
15 380900979 胶管φ44×
6-150 HOSE
16 800151710 卡箍 CLIP
17 381100410 出水管Ⅱ WATER OUTLET PIPE
18 805046477 螺母 M8 NUT M8
19 805338259 垫圈 8 WAS HER 8
20 380905904 支撑架 BRACKET
21 805046507 螺栓 M8×20 BOLT M8×20
22 381100417 固定支架 BRACKET
23 805011330 螺栓 M10×25 BOLT M10×25
