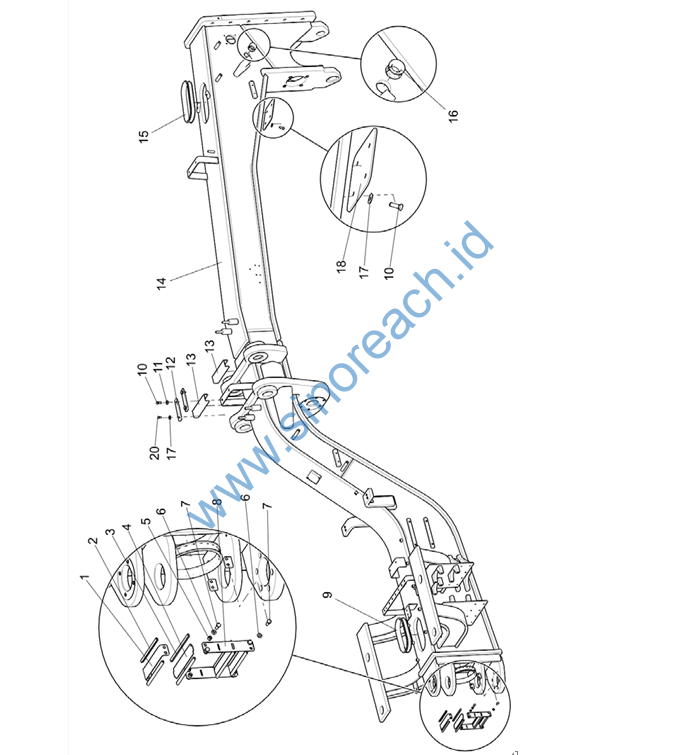

1 380906247 弯板 BENDING-PLAT E
2 801968267 密封条 SEAL
3 801968267 密封条 SEAL
4 380906246 板 PLATE
5 805046477 螺母 M8 NUT M8
6 805338276 垫圈 8 WAS HER
7 805046507 螺栓 M8×20 BOLT
M8×20
8 380906245 连接板 PLATE
9 380603211 橡胶套 RUBBER RING
10 805046473 螺栓 M10×30 BOLT
M10×30
11 380603914 垫圈 WAS HER
12 380603919 垫板 PLATE
13 380603697 橡胶套 RUBBER RING
14 380603160 前机架 FRONT FRAME
15 380603212 橡胶套 RUBBER RING
16 380901043 橡胶套Ⅳ RUBBER RING
17 805338267 垫圈 10 WAS HER 10
18 380603912 盖板 PLATE
19 380901039 橡胶套Ⅰ RUBBER RING
20 805046472 螺栓 M10×20 BOLT
M10×20

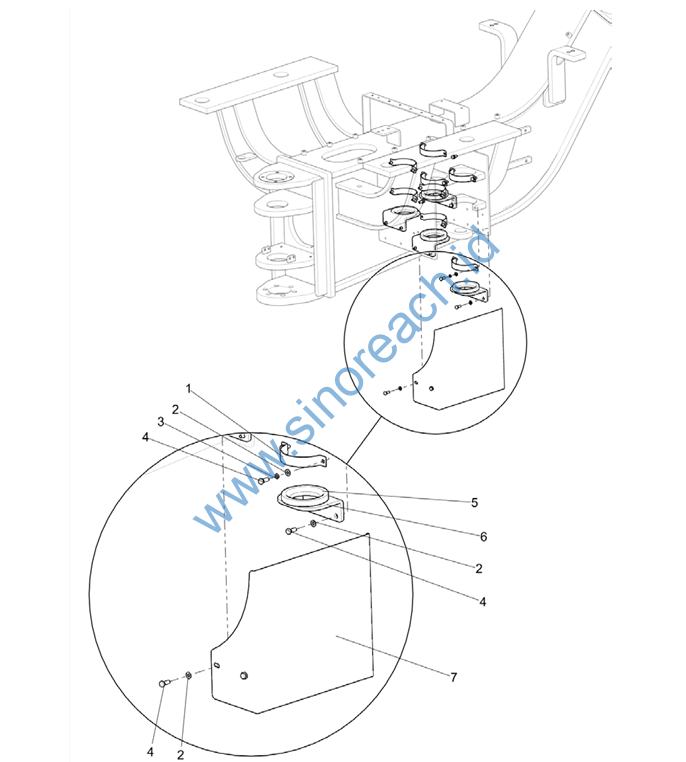

1 380500446 弯板 BENDING-PLAT E
2 805338276 垫圈 8 WAS HER 8
3 805338259 垫圈 8 WAS HER 8
4 805046507 螺栓 M8×20 BOLT M8×20
5 380500445 橡胶垫 RUBBER
6 380603162 托板 PLATE
7 380603384 弯板 BENDING-PLAT E

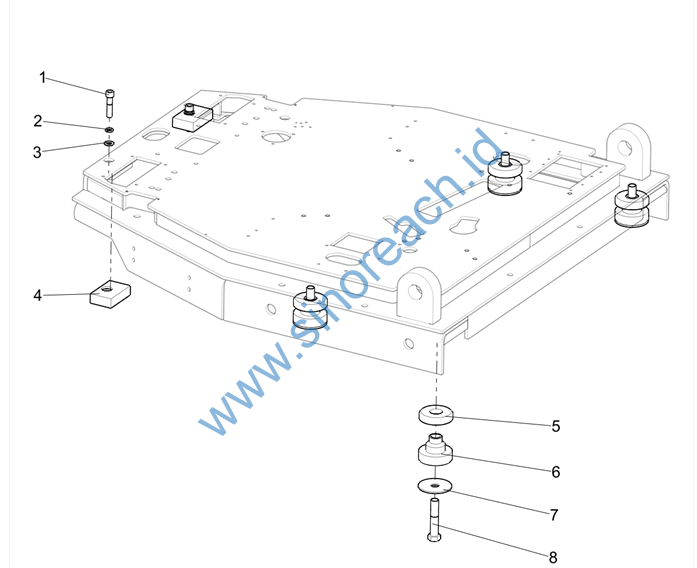

1 805140033 螺钉 M16×70 BOLT M16×70
2 805338263 垫圈 16 WAS HER 16
3 805338284 垫圈 16 WAS HER 16
4 380603443 减震垫 ABSORBER
5 380904997 减震垫 ABSORBER
6 380904990 减震垫 ABSORBER
7 380904998 平垫 FLAT PLATE
8 805006426 螺栓 M24×120 BOLT
M24×120

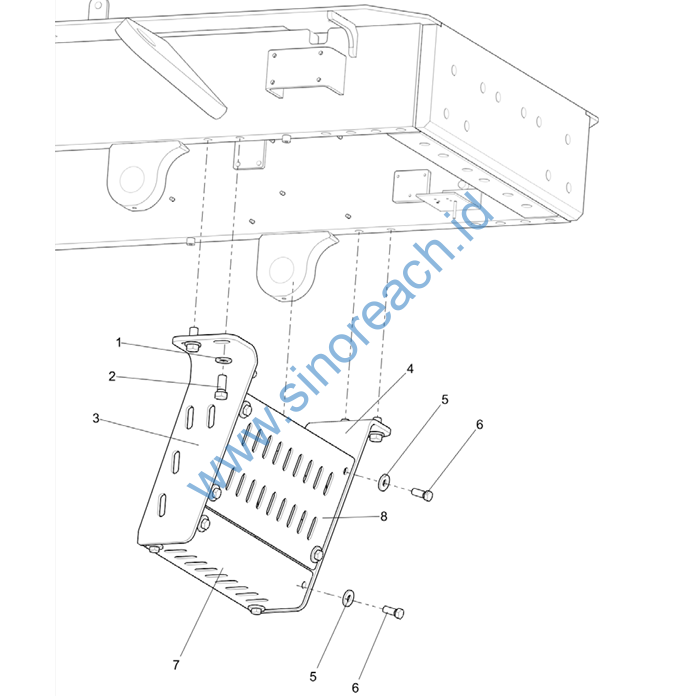

1 805338297 垫圈 20 WAS HER 20
2 805046894 螺栓 M20×45 BOLT
M20×45
3 380603700 左弯板 PLATE
4 380603694 右弯板 PLATE
5 329900300 加厚大垫圈 WAS HER
6 805006332 螺栓 M16×40 BOLT M16×40
7 380603689 下弯板 PLATE
8 380603699 后封板 PLATE

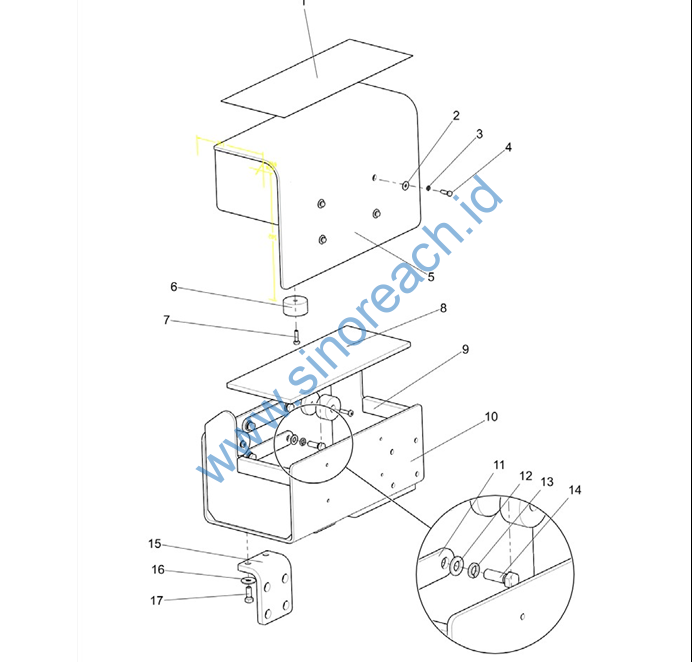

1 380904239 防滑帖 ANTISKED
2 805338264 垫圈 6 WASTER 6
3 805338258 垫圈 6 WASTER 6
4 805046496 螺栓 M6×20 BOLT M6×20
5 380904254 左盖 LEFT COVER BOARD
6 380901148 橡胶垫 RUBBER
7 805140945 螺钉 M6×25 BOLT
M6×25
8 380100333 橡胶垫 t10×400
×170 RUBBER
9 380901147 橡胶带 RUBBER
10 380904255 左电瓶座 LEFT ACCUMULATOR BOX
11 380901151 压板 CLAMP
12 805338278 垫圈 10 WASTER 10
13 805338260 垫圈 10 WASTER 10
14 805046473 螺栓 M10×30 BOLT M10×30
15 380904256 板 PLATE
16 805338267 垫圈 10 WASTER 10
17 805046462 螺栓 M10×25 BOLT
M10×25

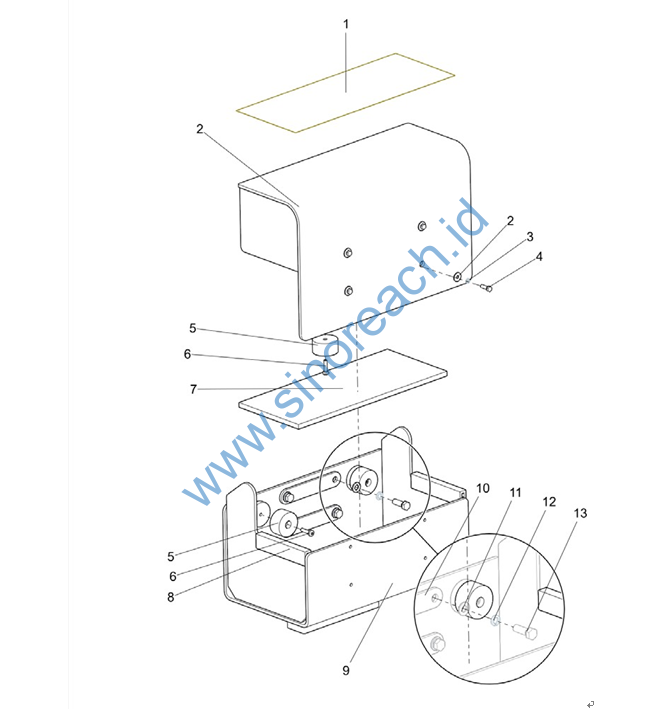

1 380904239 防滑帖 ANTISKED
2 380905020 右盖 RIGHT COVER
BOARD
3 805338258 垫圈 6(达克罗) WASTER 6
4 805046496 螺栓 M6×20( 达克罗) BOLT M6×20
5 380901148 橡胶垫 RUBBER
6 805140945 螺钉 M6×25( 达克罗) BOLT M6×25
7 380100333 橡胶垫 t10×400
×170 RUBBER
8 380901147 橡胶带 RUBBER
9 380904257 右电瓶座 RIGHT ACCUMULATOR BOX
10 380901151 压板 CLAMP
11 805338278 垫圈 10(达克罗) WASTER 10
12 805338260 垫圈 10(达克罗) WASTER 10
13 805046473 螺 栓 M10 ×
30(达克罗) BOLT M10×30
14 805338264 垫圈 6(达克罗) WASTER 6

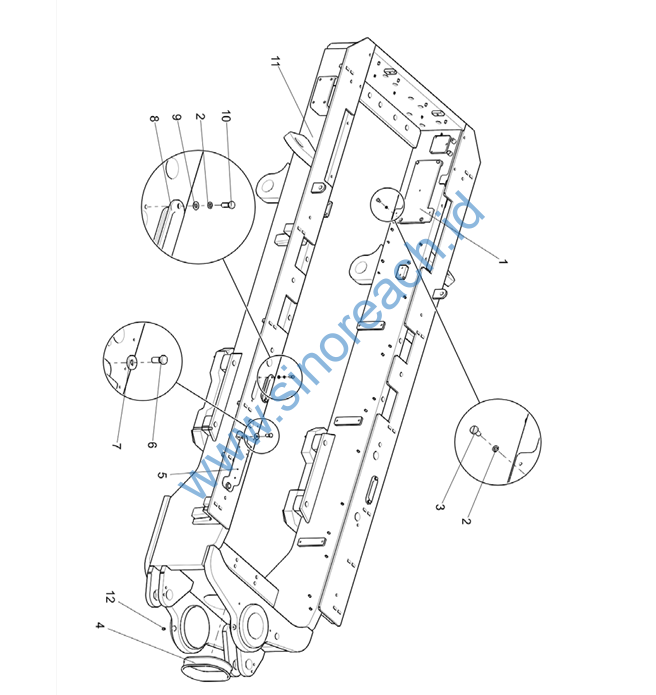

1 380905590 过渡板 PLATE
2 805338259 垫圈 8 WAS HER 8
3 805140805 螺钉 M8×16 BOLT
M8×16
4 380904235 橡胶套 RUBBER RING
5 381100614 弯板 BENDING-PLAT E
6 805046469 螺栓 M12×25 BOLT M12×25
7 329900298 加厚垫圈 WAS HER
8 380602608 橡胶套 RUBBER RING
9 805338276 垫圈 8 WAS HER 8
10 805046507 螺栓 M8×20 BOLT
M8×20
11 381100406 后机架 REAR FRAME
12 801100343 油杯 M10×1 GREASE CUP
M10×1
