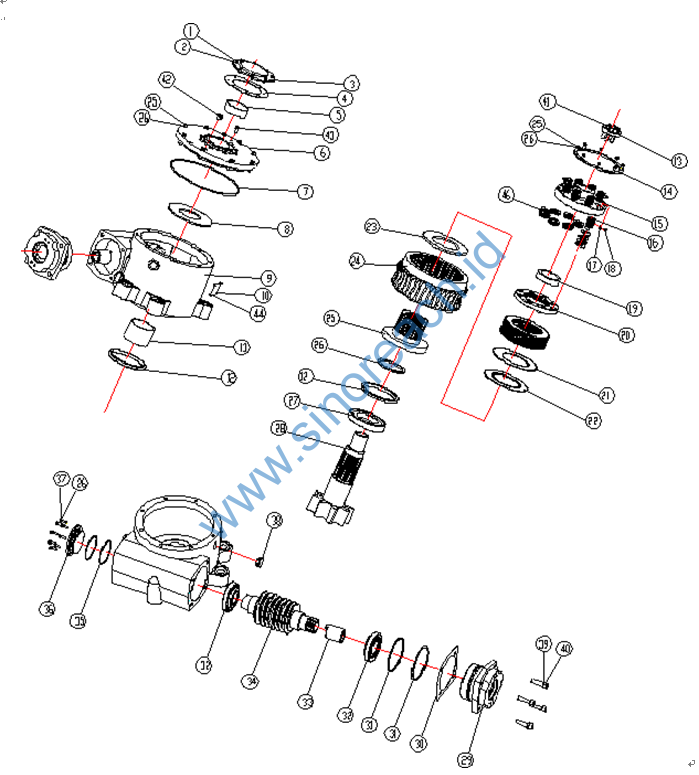

1 805046507 螺栓 M8×20 BOLT M8×20
2 805338259 垫圈 8 WASHER 8
3 800362207 上盖密封板 UPPER LID
4 800362201 上盖密封垫 GASKET OF UPPER LID
5 800362210 上铜套 UPPER BUSH
6 800362184 箱盖 CASE LID
7 800362215 密封圈 SEAL RING
8 800362189 上铜垫 UPPER COPPER
PAD
9 800362194 箱体 CASE BODY
10 800362216 标牌 MANEPLATE
11 800362211 下铜套 BELLOW BUSH
12 800362197 浮动油封 FLOAT OIL
SEAL
13 800362188 上压盖 UPPER GLAND
14 800362192 压紧圈 COMPACTED
RING
15 800362196 压紧轮 COMPACTED
WHEEL
16 800362191 棘轮 RATCHET
17 800362200 棘爪 PAWL
18 800362204 弹簧 SPRING
19 800362205 压紧套 COMPACTED
BUSH
20 800362185 摩擦片上压板 UPPER
COMPACTED
21 800362199 铁质摩擦片 IRON FRICTION
PLATE
22
800362186
纸质摩擦片 PAPER
FRICTION PLATE
23 800362208 摩擦片垫板 PAD 1
24 800362206 蜗轮 WORM GEAR 1
25 800362183 内外齿 INNER OUTER
GEAR 1
26 800362195 下铜垫 LOWER
COPPER PAD 1
27 800362190 密封圈座 SEAL SEAT 1
28 800362193 驱动轴 DRIVE SHAFT 1
29 800362209
800362187 连接体 CONNECTOR 1
30 800362203 调整垫片 ADJUSTMENT
MATS 1 组
31 803177277 O 形圈 132 ×
3.55 O RING 132×
3.55 2
32 800551983 轴承 31311 BEARING 2
33 380906128
380905660 结合套 CONNECTION BUSH 1
34 800362202 蜗杆 WORM 1
35 803192145 O 形圈 95×3.55 O RING 95×
3.55 2
36 800362198 堵盖 BLOCK LID 1
37 805046509 螺栓 M8×25 BOLT M8×25 8
38 801139480 油标 A32 OIL LEVELER 1
39 805338262 垫圈 14 WASHER 14 4
40 805139912 螺钉 M14×55 SCREW M14× 55 4
SCREW M12×
41 805139872 螺钉 M12×55 6
55
42 805048925 螺栓 M6×12 BOLT M8×12 8
43 805338258 垫圈 6 WASHER 6 8
44 801737355 蝶簧 A50-1 DISC
SPRING(A50) 32
45 800361826 透气塞 BREATHABLE
PLUG
46 803176270 螺塞 M16×1.5 PLUG(M16× 1.5)
47 805046552 螺栓 M12×50 BOLT(M12×50)
48 805338261 垫圈 12 WASHER 12
49 805500034 铆钉 3×10 RIVET
