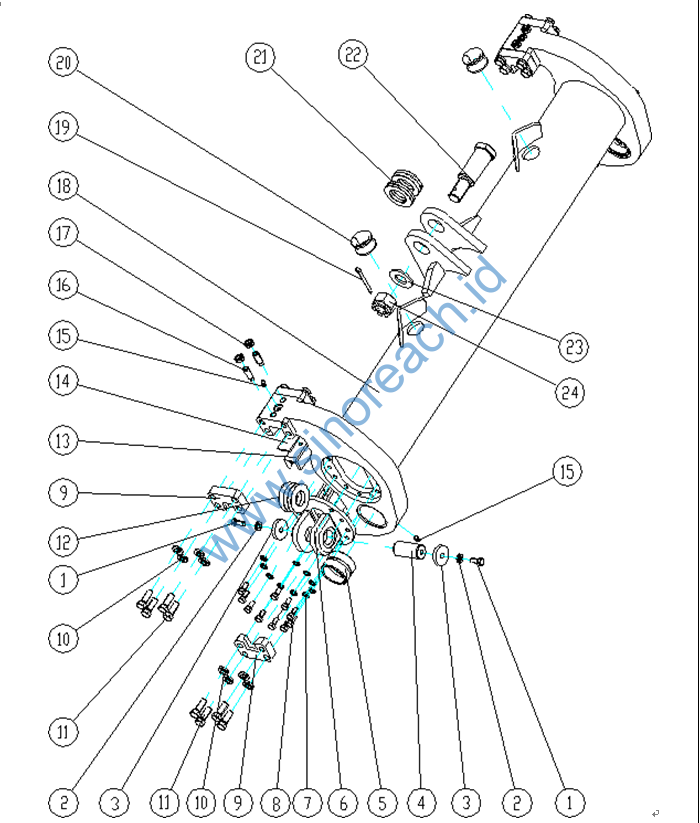

1 805046482 螺栓 M12×30 BOLT M12×30
2 329900303 加厚平垫圈 WASHER
3 381302229 圆盖板 COVER
4 380904893 销轴 AXLE
5 380905262 铜套 BUSH
6 380603720 安装座 MOUNTING PLATE
7 805338334 垫圈 12 WASHER 12
8 805046469 螺栓 M12×25 BOLT M12×25
9 380903970 挡板 PLATE
10 329900304 加厚平垫圈 WASHER
11 805006280 螺栓 M16×45 BOLT M16×45
12 380603721 垫片 ADJUSTING
SHIM
13 381601244 铜导槽 COPPER
GROOVE
14 381600374 垫板 SPACER
15 801100336 油杯 M10×1 OIL CUP M10× 1
16 805140968 螺钉 M16×45 SCREW M16× 45
17 805238777 螺母 M16 NUT M16
18 380603090 角位器 BRACKET AS
19 805600080 销 8×80 PIN 8×80
20 381301279 橡胶套 RUBBER
SLEEVE
21 380603636 垫片 ADJUSTING
SHIM
22 380903972 销轴 AXLE
23 380903971 垫圈 SPACER
24 805238907 螺母 M36×2 NUT M36×2

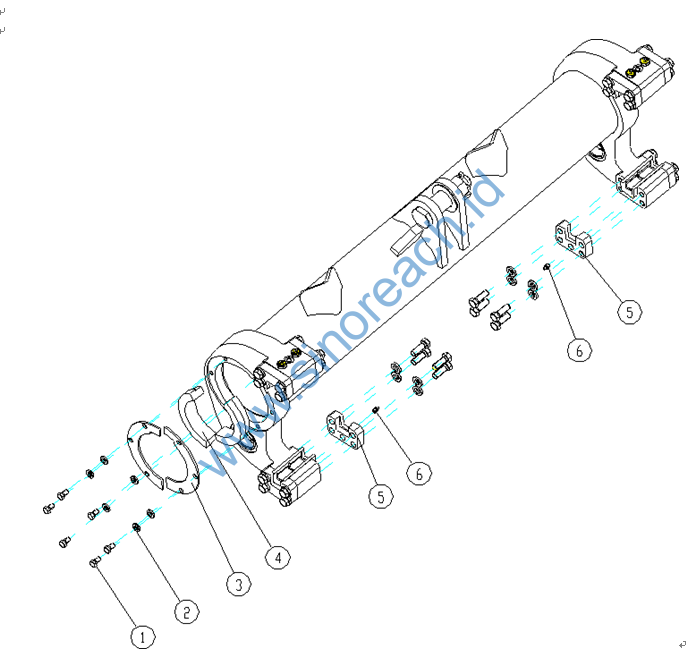

1 805046544 螺栓 M12×20 BOLT M12×20 6
2 329900303 加厚平垫圈 WASHER 6
3 380905918 压板 PLATE 2
4 380905263 橡胶垫 RUBBER SLEEVE 2
5 380903974 挡板Ⅱ PLATE 2
6 801100336 油杯 M10×1 OIL CUP M10× 1 2

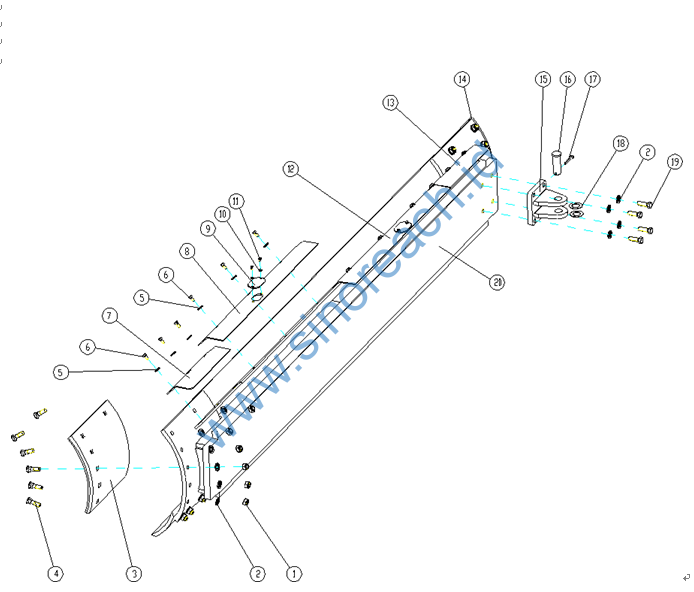

1 381301531 螺母 NUT
2 805338297 垫圈 20 WASHER 20
3 380602706
380905253
380905889
左侧刀片 LEFT SIDE BLADE
4 380602507 螺栓 BOLT
5 329900298 加厚大垫圈 WASHER
6 805046469 螺栓 M12×25 BOLT M12×25
7 380602866
380602874
380905761
左侧护板 LEFT GUARD PLATE
8 380603754 左中护板 LEFT GUARD
PLATE
9 381300848 盖板 COVER
10 329900301 加厚平垫圈 WASHER
11 805046502 螺栓 M8×12 BOLT M8×12
12 380603755 右中护板 RIGHT GUARD PLATE
13 380602865
380603755
380905768
右侧护板 RIGHT GUARD PLATE
14 380602714
380905254
380905910
右侧刀片 RIGHT SIDE BLADE
15 380903663 油缸座 BRACKET
16 380903999 销轴 AXLE
17 805600065 销 10×70 PIN 10×70
18 380904000 橡胶垫 RUBBER SHIM
19 805047076 螺栓 M20×60 BOLT M20×60
20 380905920
380905920
380603756
铲刀体
BLADE BODY

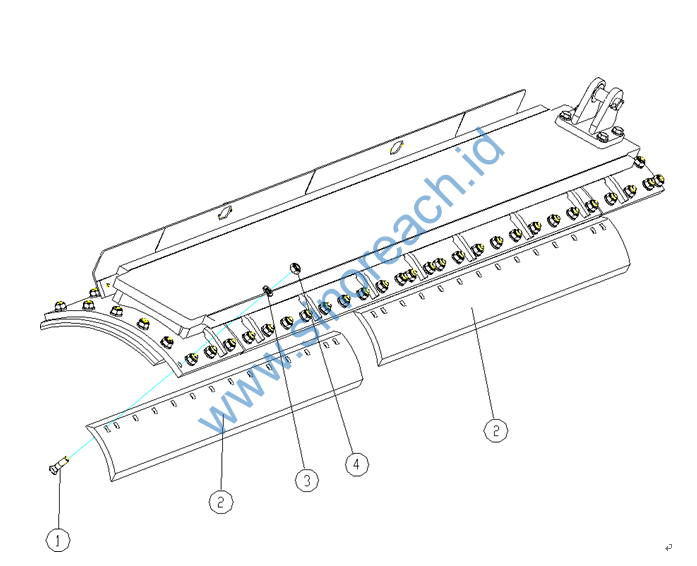

1 380602507 螺栓 BOLT
380500997
2 380602506
380905122 刀片 BLADE
3 805338297 垫圈 20 WASHER 20
4 381301531 螺母 NUT

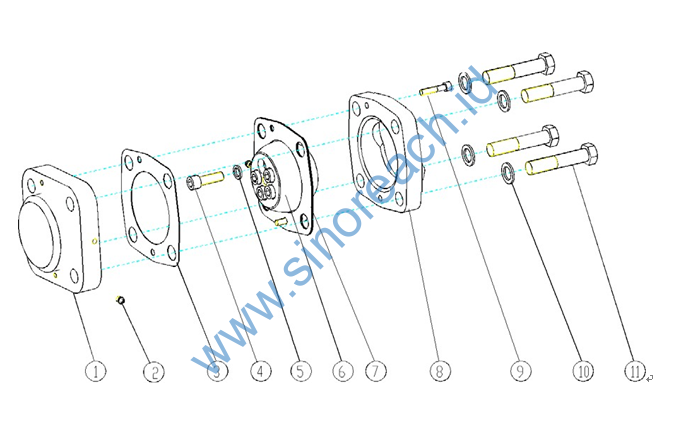

1 381100453 铰盖 JOINT COVER
2 801103215 油杯 M10×1 OIL CUP M10× 1
3 381100520 调整垫 ADJUSTING
SHIM
4 805141518 螺钉 M16×1.5
×50 SCREW M16× 1.5×50
5 805338246 垫圈 16 WASHER 16
6 381100448 球铰盖 COVER
7 381100633 调整垫 ADJUSTING
SHIM
8 380906307 铰座 JOINT COVER
9 805139919 螺钉 M10× 50(达克罗) SCREW M10× 50
10 805338233 垫圈 24 WASHER 24
11 805006426 螺栓 M24× 120(达克罗) BOLT M24×120

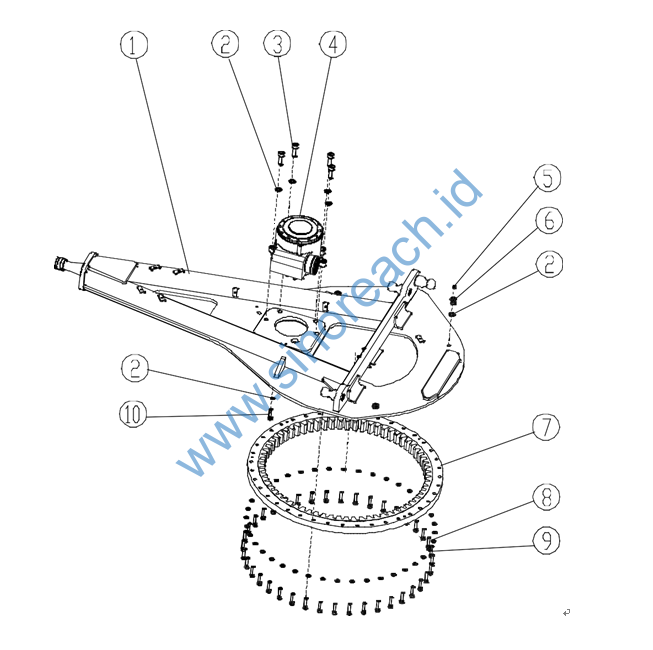

| 1 | 380906311 | 牵引架 | TRACTION FRAME | 1 |
| 2 | 805338233 | 垫圈 24 | WASHER 24 | 8 |
| 3 | 805140803 | 螺钉 M24×75 | SCREW M24× 75 | 4 |
| 4 | 800359845 | 蜗轮箱 | TURBINE BOX | 1 |
| 5 | 801103215 | 油杯 M10×1 | OIL CUP M10× 1 | 3 |
| 6 | 382101287 | 螺栓座 | BOLT | 3 |
| 7 | 380902164 | 回转支承 | SLEWING RING | 1 |
| 8 | 805338246 | 垫圈 16 | WASHER 16 | 40 |
| 9 | 805046581 | 螺栓 M16×75 | BOLT M16×75 | 40 |
| 10 | 805004839 | 螺栓 M24×70 | BOLT M24×70 | 1 |
1 380905940 支架 SUPPORT 1
2 805338332 垫圈 10 WASHER 10 2
3 805046472 螺栓 M10×20 BOLT M10×20 2
4 380906289 回转圈 ROTARY RING 1
5 805046586 螺栓 M18×55 BOLT M18×55 40
6 805338335 垫圈 18 WASHER 18 40
7 805639638 销 8×90 PIN 8×90 2
8 380900914 螺母 NUT 2
9 380904071 垫圈 SPACER 2
10 380904072 调整垫片 ADJUSTING
SHIM 6
11 380903973 铜套 BUSH 2
12 380905233 销轴 AXLE 2
13 801103215 油杯 M10×1 OIL CUP M10× 1 2
