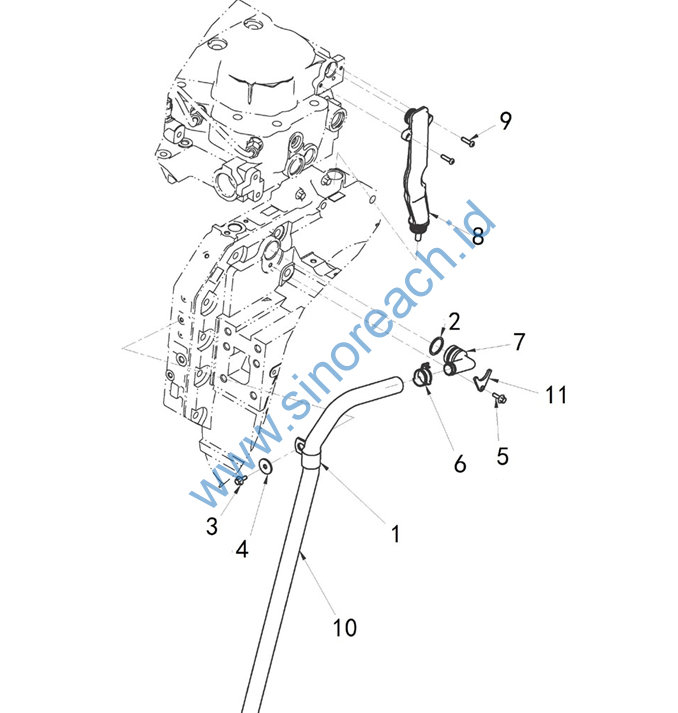

1 C107460 管夹 CLIP
2 C145530 O 形密封圈 SEAL,O RING
3 C3900627 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
4 C3910960 平垫圈 WASHER,PLAIN
5 C3913638 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
6 C3917995 钢丝型弹性环箍 CLAMP,SPRING HOSE
7 C3966164 曲轴箱通风件 BREATHER,CRANKCASE
8 C3971371 曲轴箱通风管 TUBE,BREATHER
9 C3977572 圆头螺钉 SCREW,ROUND HEAD
CAP
10 C4063843 直软管 HOSE,PLAIN
11 C4899498 夹紧板 PLATE,CLAMPING
1 C3008469 螺塞 PLUG,PIPE 1

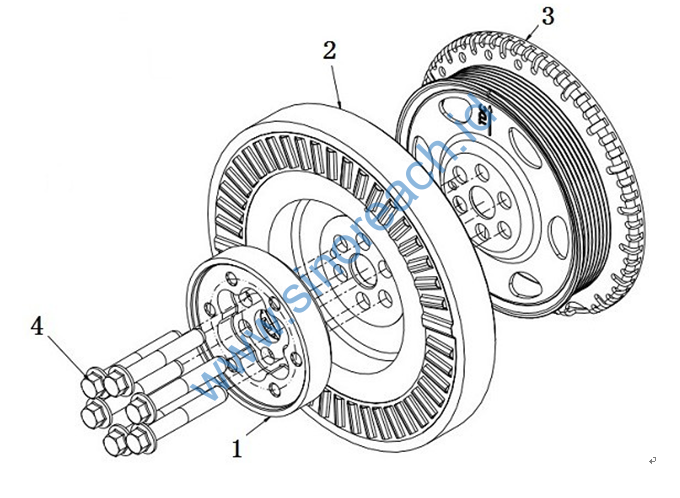

1 C3978478 曲轴法兰 FLANGE,CRANKSHAFT
2 C4991131 扭振减振器 DAMPER,VIBRATION
3 C5255204 曲轴皮带轮 PULLEY,CRANKSHAFT
4 C5304950 六角法兰面 螺栓 SCREW,HEX FLANGE HEAD CA

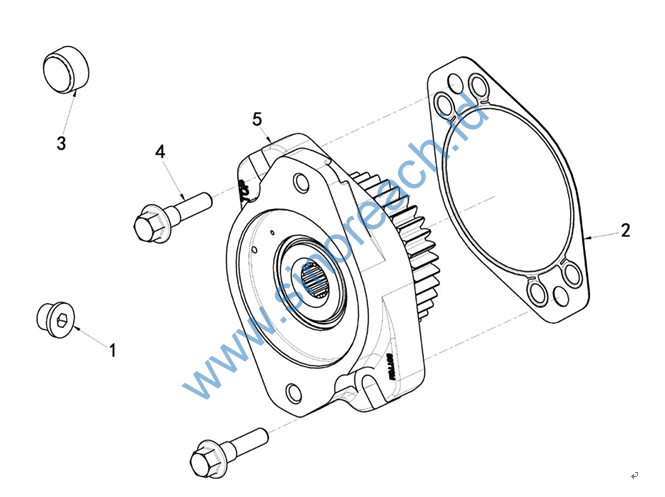

1 C3089567 螺塞 PLUG,THREADED
2 C4896897 附件驱动盖板密封垫 GASKET,ACC DRIVE COVER
3 C4933532 螺塞 PLUG,PIPE
4 c3093940 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
5 C3999967 液压泵连接法兰 ADAPTER,HYDRAULIC PUMP
C5256423 节温器 THERMOSTAT
1 C5303837 发电机 ALTERNATOR 1

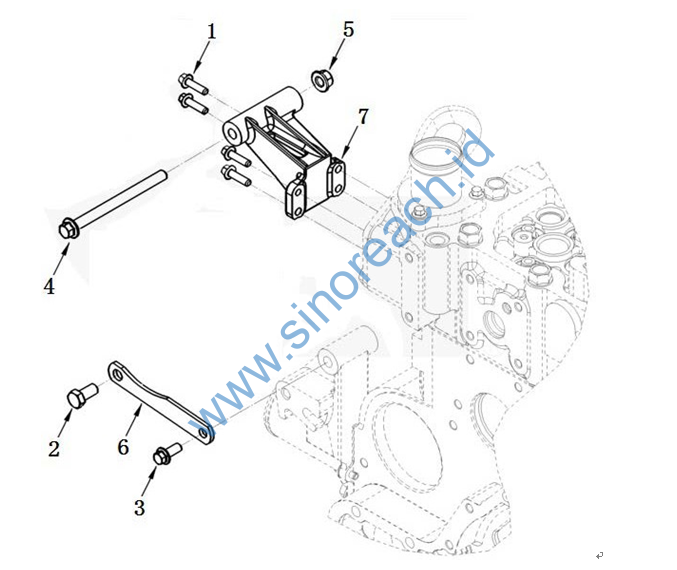

1 C3900632 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA 4
2 C3901249 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA 1
3 C3902460 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA 1
4 C3903105 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA 1
5 C3903210 六角法兰面螺母 NUT,HEXAGON FLANGE 1
6 C3942821 发电机支撑 BRACE,ALTERNATOR 1
7 C4931017 发电机支架 SUPPORT,ALTERNATOR 1

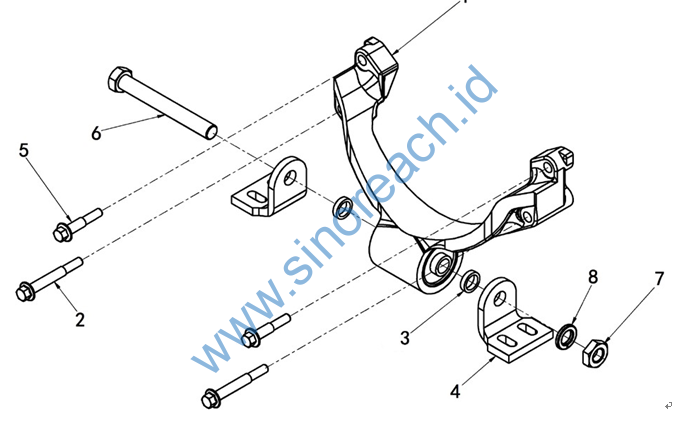

1 3955078 发动机前悬置支架 SUPPORT,FRONT ENGINE
2 C3902451 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
3 C3918542 安装隔块 SPACER,MOUNTING
4 C3930675 发动机前悬置支架 SUPPORT,FRONT ENGINE
5 C3937692 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
6 S 150 A 六角头螺栓 SCREW,HEXAGON HEAD CAP
7 S 279 六角头厚螺母 NUT,HEAVY HEXAGON JAM
8 S 611 锁紧垫圈 WASHER,LOCK
1 C4937363 转速传感器 SENSOR,SPEED 1

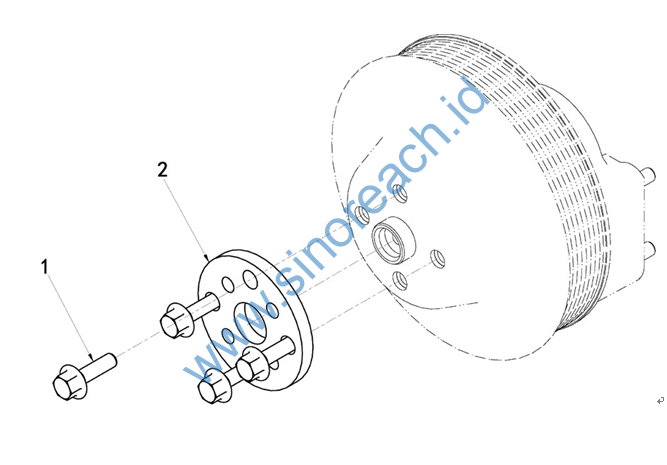

1
C3903112 六角法兰面螺栓 SCREW,HEX
FLANGE HEAD CA
4
2 C3915490 夹紧板 PLATE,CLAMPING 1

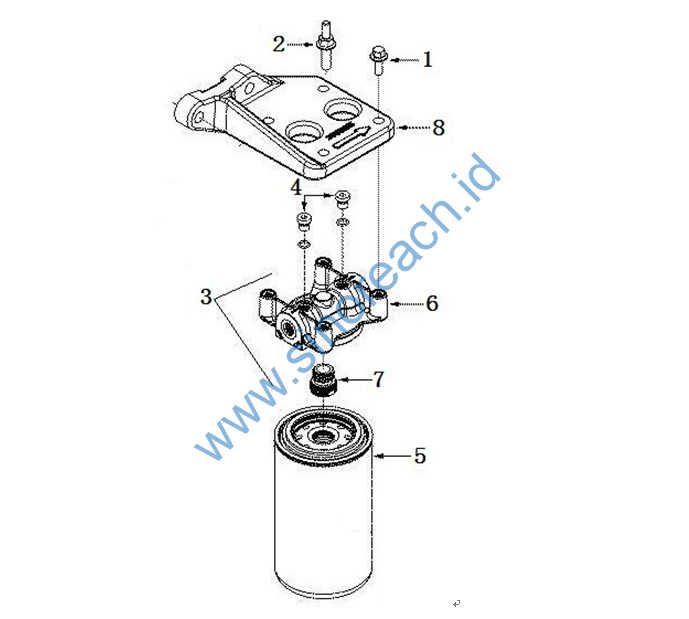

1
C3900632 六角法兰面螺栓 SCREW,HEX
FLANGE HEAD CA
2
C3901445 六角法兰面螺栓 SCREW,HEX
FLANGE HEAD CA
3 C5335858ZZ 燃油滤清器 FILTER,FUEL
4 C3678923 螺塞 PLUG,THREADED
5 C4989106 燃油滤清器 FILTER,FUEL
6 C4990848 燃油滤清器座 HEAD,FUEL
FILTER
7 C5335559 滤清器座接头 ADAPTER,FILTER
HEAD
8 C5349977 滤清器支架 SUPPORT,FILTER

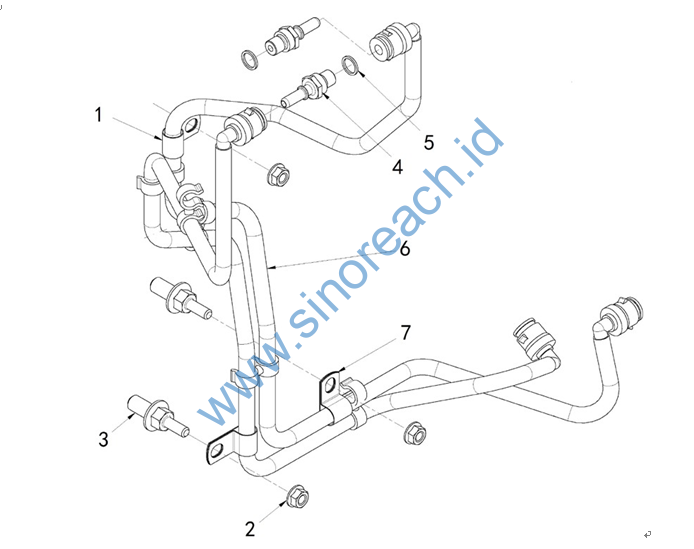

1 C3609967 管夹 CLIP
2 C3900589 六角法兰面螺母 NUT,HEXAGON FLANGE
3 C3944061 六角法兰面螺栓 SCREW,STUDDED FLANGE CAP
4 C3964337 快换接头 CONNECTOR,QCK DISCONNECT
5 C4891385 密封垫圈 WASHER,SEALING
6 C5313439 燃油输油管 TUBE,FUEL
SUPPLY
7 C68152 管夹 CLIP

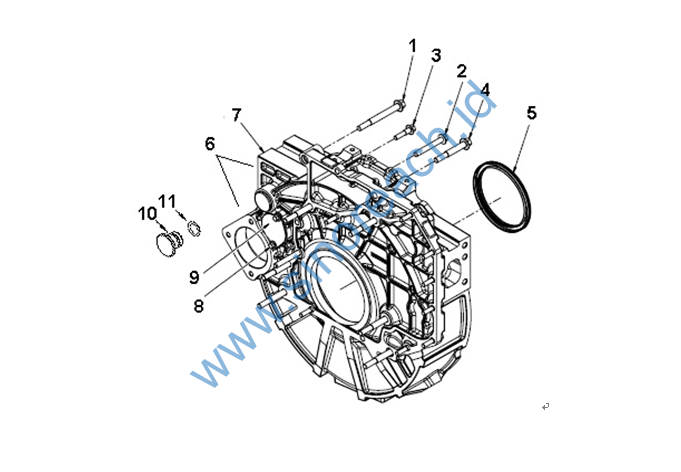

1 C3089188 六角法兰面 螺栓 SCREW,HEX FLANGE HEAD CA
2 C3900679 六角法兰面 螺栓 SCREW,HEX FLANGE HEAD CA
3 C3903464 六角法兰面 螺栓 SCREW,HEX FLANGE HEAD CA
4 C3914177 六角法兰面 螺栓 SCREW,HEX FLANGE HEAD CA
5 C3968563 油封 SEAL,OIL
6 C3973062ZZ 飞轮壳 HOUSING,FLYWHEEL
7 3973061 飞轮壳 HOUSING,FLYWHEEL
8 C3900629 六角法兰面 螺栓 SCREW,HEX FLANGE HEAD CA
9 C3908095 盖板 PLATE,COVER
10 C3910248 堵塞 PLUG,O RING
11 C3910260 O 形密封圈 SEAL,O RING
C3903464
六角法兰面螺栓 SCREW,HEX
FLANGE HEAD CA
