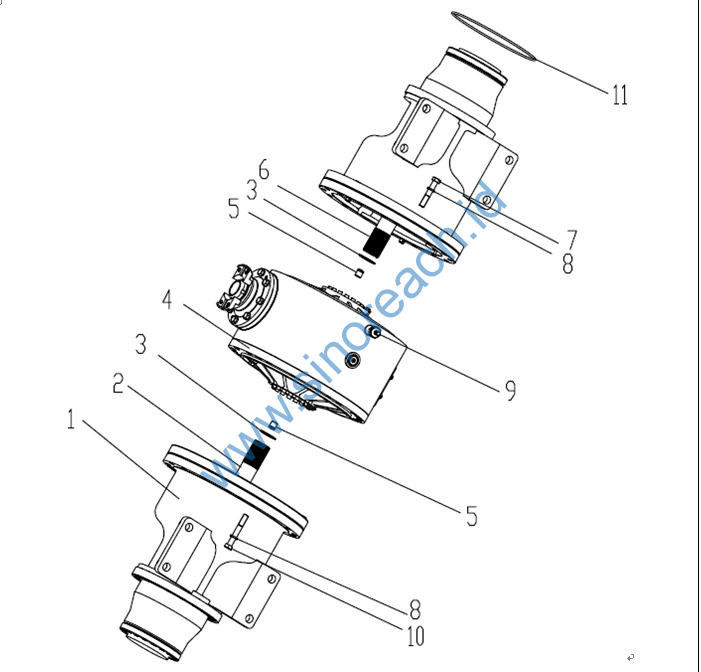

1
275400008
中段轮边总成 PLANETARY
ASSEMBLY OF MIDPIECE
2 275400026 左半轴 LEFT SHAFT
3 805400027 挡圈 50 CIRCLIP
4
275400159
主减速器总成 MAIN REDUCTOR ASSY
5 275100125 调整支柱 ADJUST POLE
275100126 调整支柱 ADJUST POLE
275100196 调整支柱 ADJUST POLE
6 275400027 右半轴 RIGHT SHAFT
7 805049668 螺栓 M16×1.5
×90 BOLT M16×1.5
×90
8 805338263 垫圈 16 WASHER 16
9 803163983 透气塞B 型 BERATHER
PLUG
10 805049666 螺栓 M16×1.5
×110 BOLT M16×1.5
×110
11 803400746 O 形圈
295×5.3 O RING 295×
5.3

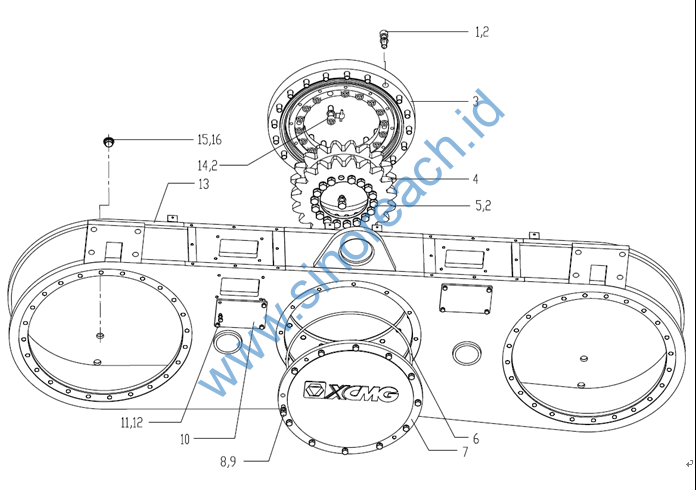

1 805141771 螺钉 M16×1.5
×50 BOLT M16×1.5
×50
2 805338850 垫圈 16 WASHER 16
3 800350995 垫圈 16 WASHER
4 275400079 双链轮 TWO
SPROCKETS
5 805049182 螺栓 M16×35 BOLT M16×35
6 803196026 O 型圈 387×7 ORING 387×7
7 275400140 大盖板 COVER
8 805046482 螺栓 M12×30 BOLT M12×30
9 805338261 垫圈 12 WASHER 12
10 275400060 侧盖板 COVER
11 805046507 螺栓 M8×20 BOLT M8×20
12 805338259 垫圈 8 WASHER 8
13 275400190 平衡箱 BALANCE-BOX
14 805141213 螺钉 M16×55 BOLT M16×55
15 803107805 螺塞 M22×1.5 PLUG M22×1.5
16 805300032 垫圈 22 WASHER 22

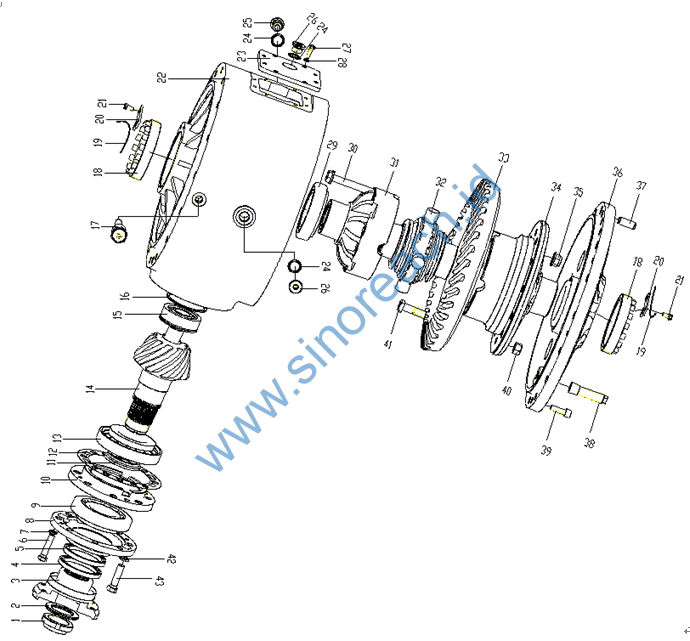

1 275100187 锁紧螺母 LOCK NUT
2 275100174 垫圈 WASHER
3 275400032 输入法兰 FLANGE
4 803164330 骨架油封 FB80
×100×10 OIL SEAL FB80
×100×10
5 803164331 骨架油封 B80× 100×10 OIL SEAL B80
×100×10
6 805046553 螺栓 M12×55 BOLT M12×55
7 805338261 垫圈 12 WASHER
8 275400015 密封盖 COVER
9 800511282 轴承 31313 BREARING
10 275400023 轴承座 BEARING
SUPPORT
11 275400028 轴承调整隔套 ADJUST
WASHER
275400002 轴承调整隔套 ADJUST WASHER
275400013 轴承调整隔套 ADJUST WASHER
12 275400029 调整垫片 ADJUST
WASHER
275400045 调整垫片 ADJUST
WASHER
275400046 调整垫片 ADJUST WASHER
13 800511279 轴承 31314 BEARING
14 275400097 主动螺旋伞齿轮 DRIVING GEAR
15 800511378 轴承 142807Y BEARING
16 275101956 止动环 SNAP RING
17 275400005 透气组件 VENTILATION
MODULE
18 275400019 差速器螺母 DIFFERENTIAL
NUT

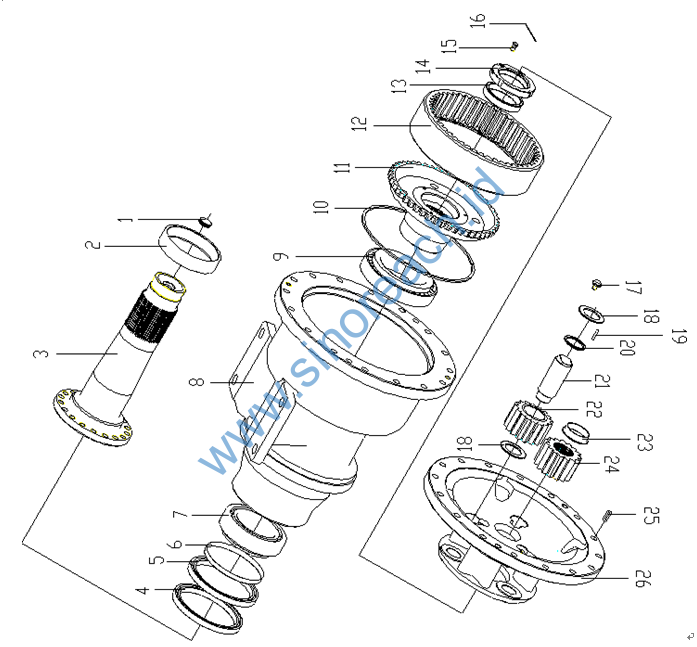

1 限位块 LIMITING
BLOCK
2
275400138 密封套 SEAL CARTRIDGE
3
双排链轮轴 TWO CHAIN WHEELS SHAFT
4
803377263 唇 形 密 封 圈
FB160 × 190 ×
15 OIL SEAL FB160×190×15
5
803164087 唇 形 密 封 圈
B160 × 190 ×
15 OIL SEAL B160
×190×15
6 275400040 隔套 SNAP RING
7 226800188 轴承 33022 BEARING
8
275400043
行星减速壳体 PLANETARY
REDUCTION GEAR HUB
9 800511283 轴承 32026 BEARING
10 275400039 卡环 LOCK RING
11 275400014 齿圈支承 RING HUB
12 275400042 齿圈 RING GEAR
13 275100248 隔套 SLEEVE
14 275400010 螺母 NUT
15 275400003 螺栓 BOLT
16 820301556 镀 锌 钢 丝
10-24# STEEL WIRE
17 275400038 螺栓 M10×14 BOLT M10×14
18 275100141 挡板 PLATE
19 275100139 滚针 ROLLER
20 269900210 隔套 SNAP RING

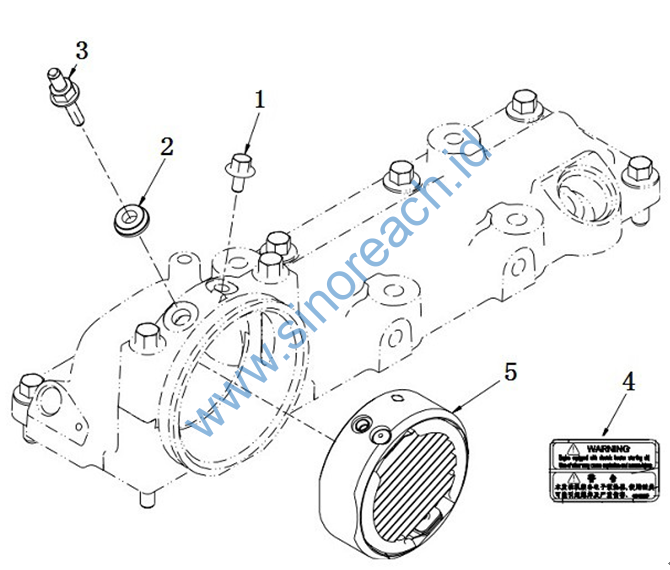

1 C3900625 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
2 C4896355 保持架 RETAINER,COVER
3 C4940117 六角法兰面螺栓 SCREW,STUDDED FLANGE CAP
4 C4943187 标签 TAG,INSTRUCTION
5 C5258351 进气预热器 HEATER,INTAKE
AIR

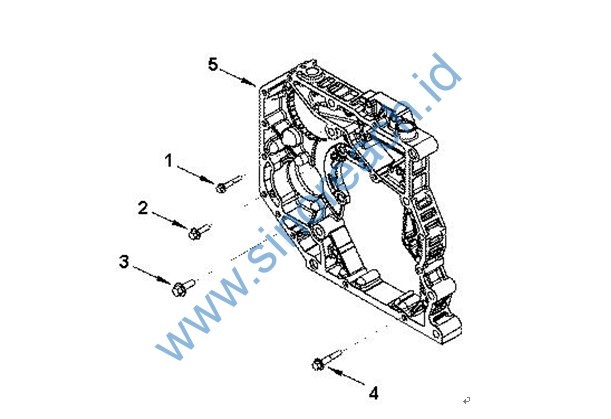

1
C3901445 六角法兰面螺 栓 SCREW,HEX
FLANGE HEAD CA
2
C3903112 六角法兰面螺 栓 SCREW,HEX
FLANGE HEAD CA
3
C3910495 六角法兰面螺 栓 SCREW,HEX
FLANGE HEAD CA
4
C3918153 六角法兰面螺 栓 SCREW,HEX
FLANGE HEAD CA
5 C4936423 齿轮室 HOUSING,GEAR

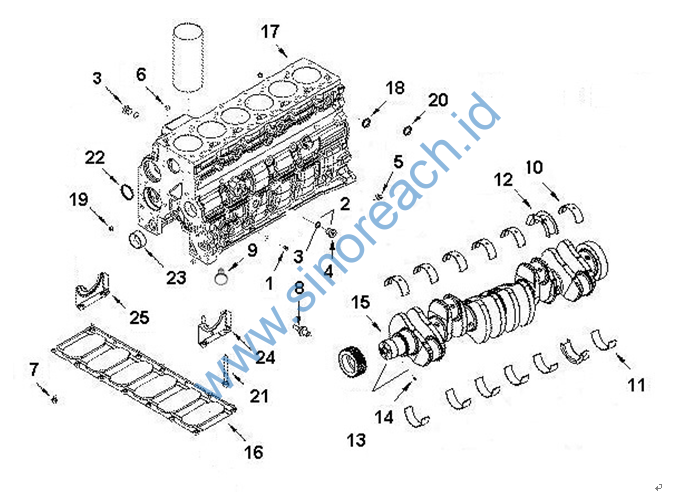

1 C3678873 螺塞 PLUG,THREADED
2 C3678921ZZ 螺塞 PLUG,THREADED
3 C3678912 O 形密封圈 SEAL,O RING
4 C3678922 螺塞 PLUG,THREADED
5 C3678923 螺塞 PLUG,THREADED
6 C3902343 定位环 DOWEL,RING
7 C3903990 六角法兰面 螺栓 SCREW,HEX FLANGE HEAD CA
8 C3936352 六角法兰面 螺栓 SCREW,STUDDED FLANGE CAP
9 C3947759 挺杆体 TAPPET,VALVE
10 C3978818 曲轴瓦 BEARING,MAIN
11 C3978820 曲轴瓦 BEARING,MAIN
12 C3978822 曲轴止推瓦 BEARING,THRUST
13 C4934861ZZ 曲轴 CRANKSHAFT,ENGINE
14 C3955030 定位销 DOWEL,PIN
15 C4934862 曲轴 CRANKSHAFT,ENGINE
16 C5290910 缸体加强板 STIFFENER,CYLINDER
BLOCK
17 C5302096 缸体 BLOCK,CYLINDER
18 C3900956 碗形塞 PLUG,EXPANSION
19 C3905401 碗形塞 PLUG,EXPANSION
20 C3914035 碗形塞 PLUG,EXPANSION
21 C3927948 抗碎螺栓 SCREW,FRACTURE
RESISTANT
22 C4938189 碗形塞 PLUG,EXPANSION
23 C4983253 衬套 BUSHING
24 C5314775 主轴承盖 CAP,MAIN
BEARING
25 C5314776 主轴承盖 CAP,MAIN
BEARING
