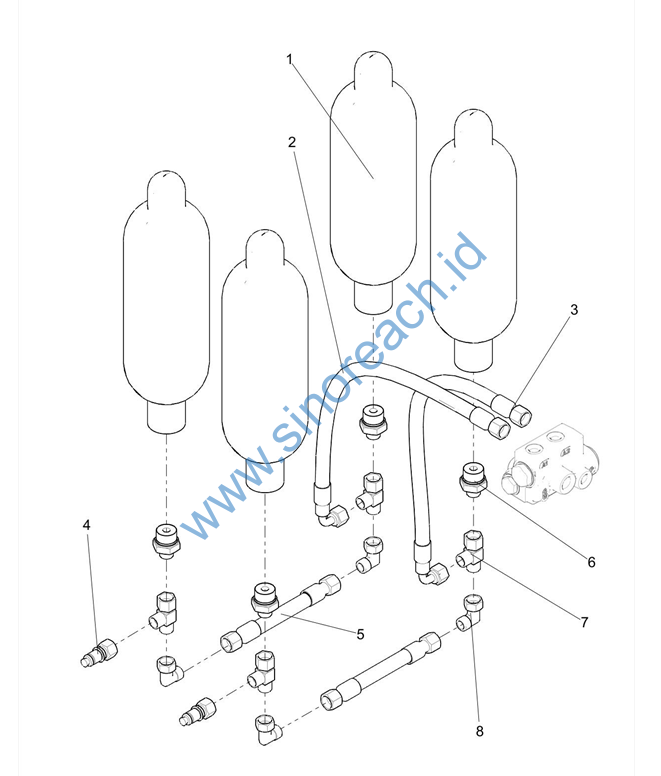

1 803202752 蓄能器 ACCUMULATER
2 803191120 软管总成 HOSE ASSY 3 803150250 软管总成 HOSE ASSY
4 803183237 接头 JOINT
5 803420510 软管总成 HOSE ASS`Y
6 803191014 接头 JOINT
7 803105415 接头 JOINT
8 803107607 接头 JOINT

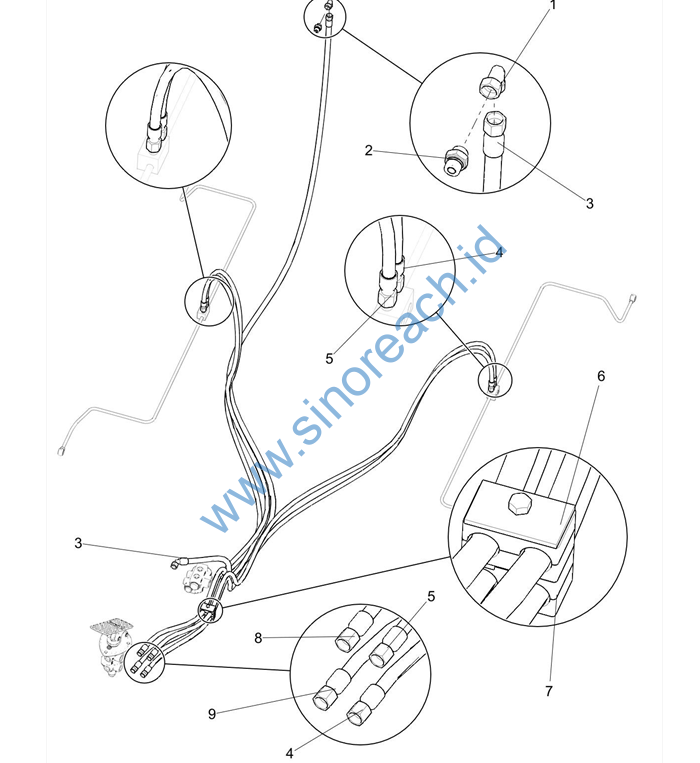

1 803107607 接头 JOINT
2 803103852 接头 JOINT
3 803420512 软管总成 HOSE ASSY 4 803420506 软管总成 HOSE ASSY
5 803420506 软管总成 HOSE ASSY 6 803163344 管夹 CLAMP 7 803192561 管夹 CLAMP 8 803420506 软管总成 HOSE ASSY
9 803420506 软管总成 HOSE ASS`Y

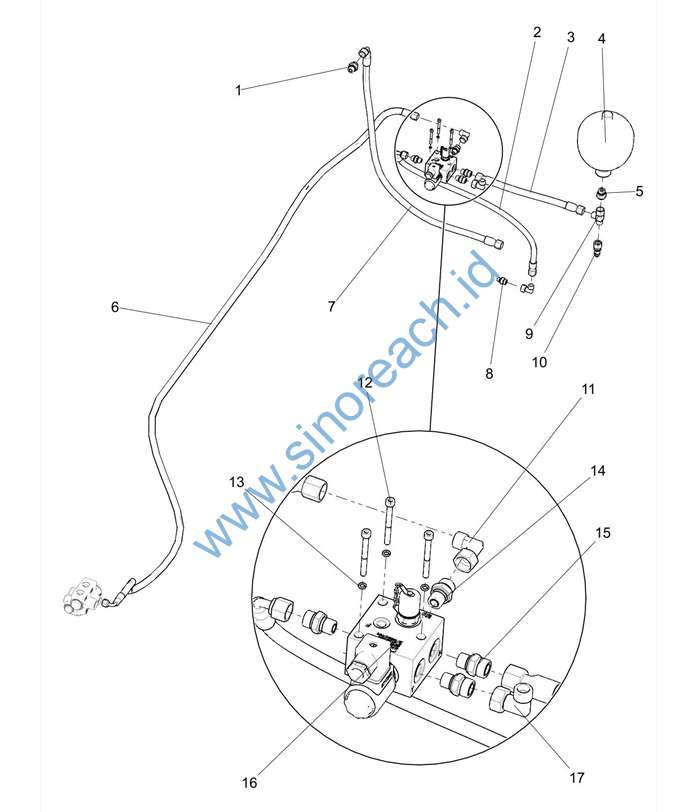

1 803103852 接头 JOINT
2 803420513 软管总成 HOSE ASSY 3 803401502 软管总裁 HOSE ASSY
4 803190055 蓄能器 ACCUMULATER
5 803164255 接头 JOINT
6 803175545 软管总成 HOSE ASSY 7 803190506 软管总成 HOSE ASSY
8 803309214 接头 JOINT
9 803105415 接头 JOINT
10 803183237 接头 JOINT
11 803103351 接头 JOINT
12 805140583 螺钉 M5×50 BOLT
13 805338380 垫圈 5 WASHER
14 803103341 接头 JOINT
15 803105414 接头 JOINT
16 801504498 停车驻动 VALVE
17 803107607 接头 JOINT

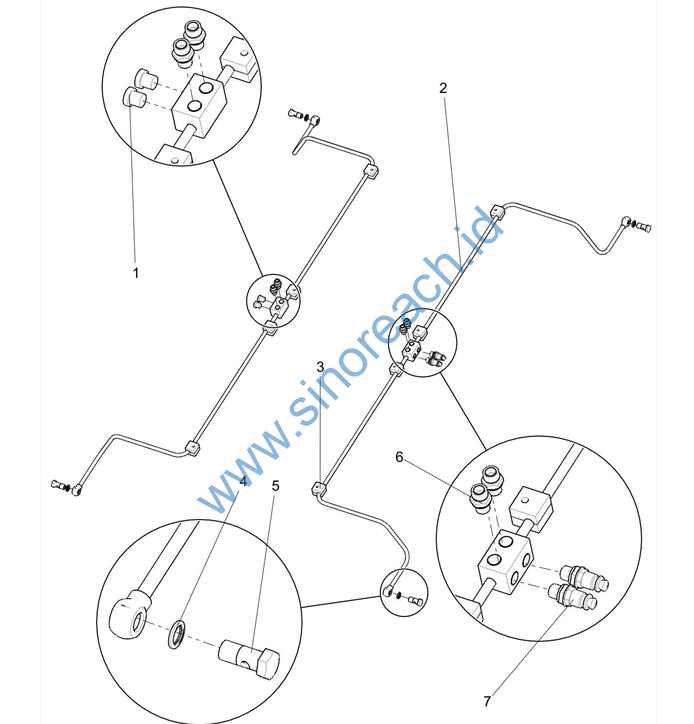

1 803103961 PLUG 堵头
2 803381556 METAL PIPE
ASS`Y 金属管总成
3 803190339 CLAMP 管夹
4 805338302 WASHER 垫圈 14
5 805049142 BOLT 螺栓 M14×1.5× 32
6 803103341 JOINT 接头
7 803163524 JOINT 接头

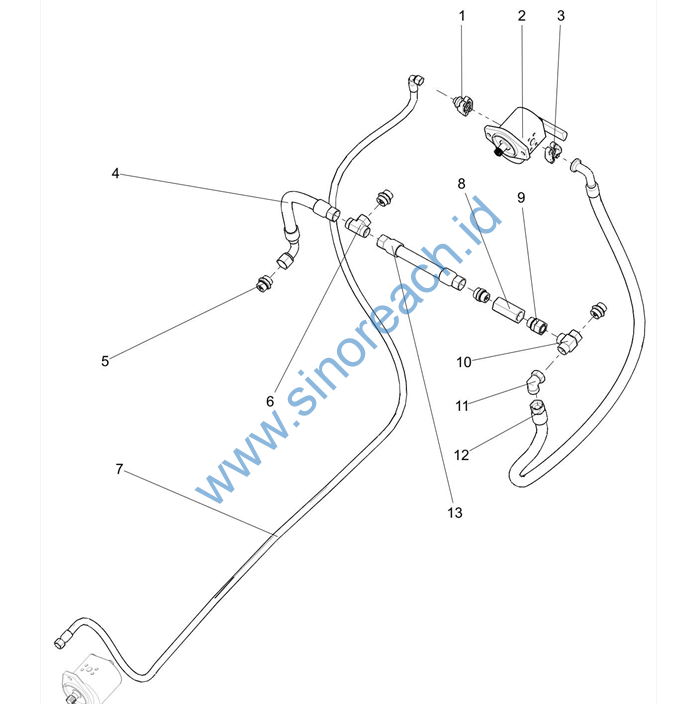

1 803190789 法兰接头 FLANGE JOINT
2 803077468 风扇马达 FUN MOTOR
3 803166765 法兰 FLANGE
4 803300209 软管总成 HOSE ASSY 5 803100723 接头 JOINT 6 803176937 接头 JOINT 7 803273433 软管总成 HOSE ASSY
8 803006890 单向阀 VALVE
9 803174755 接头 JOINT
10 803103777 接头 JOINT
11 803103798 接头 JOINT
12 803420511 软管总成 HOSE ASS`Y

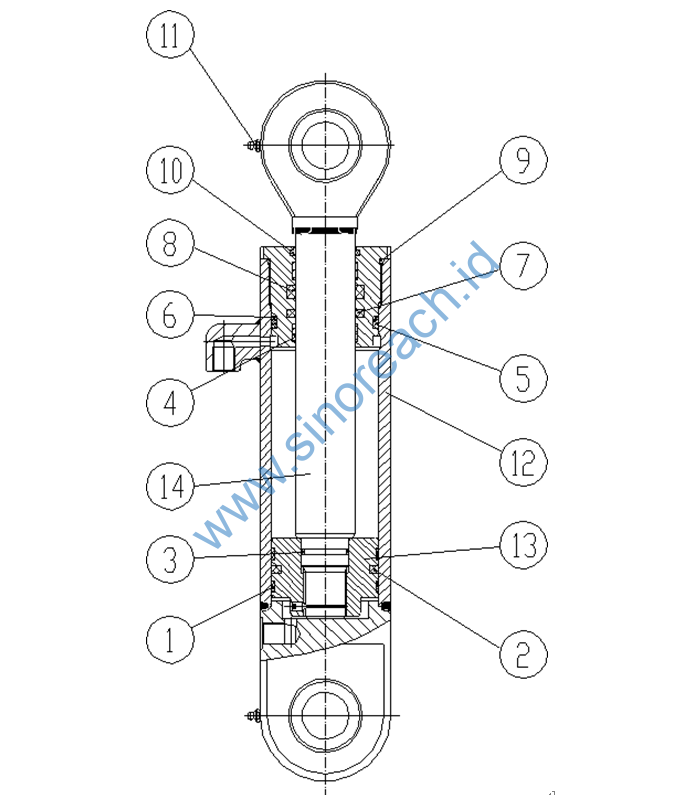

1 支撑环 SUPPORT RING
2 格莱圈 HE RING
3 803044803 O 型圈 403.1 O RING 4 支撑环 SUPPORT RING 5 803304485 O 型圈 905.7 O RING
6 挡圈 SHIELD
7 803195966 斯特封 STEP SA LE
8 RUJ 型封圈 RUJ RING
9 803377733 O 型圈 90*3.55 O RING
10 防尘圈 RING
11 油杯 FILLING NOZZLE
12 缸筒 CYLINDER
CANISTER
13 活塞 PISTON
14 活塞杆 CYLINDER POLE

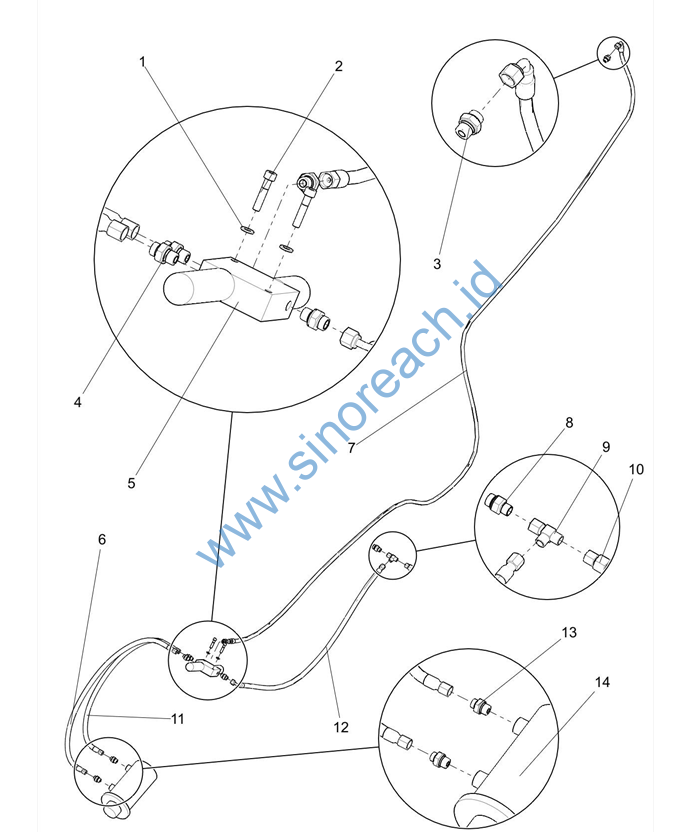

| 1 | 329900301 | 加厚平垫圈 | WASHER |
| 2 | 805139978 | 螺钉 M8×40 | BOLT |
| 3 | 803103852 | 接头 | JOINT |
| 4 | 803105411 | 接头 | JOINT |
| 5 | 803011021 | 电磁阀组 | VALVE |
| 6 | 803180058 | 软管总成 | HOSE ASS`Y |
| 7 | 803420584 | 软管总成 | HOSE ASS`Y |
| 8 | 803192034 | 接头 | JOINT |
| 9 | 803162089 | 接头 | JOINT |
| 10 | 803398324 | 过渡接头 | JOINT |
| 11 | 803180051 | 软管总成 | HOSE ASS`Y |
| 12 | 803176032 | 软管总成 | HOSE ASS`Y |
| 13 | 803103529 | 接头 | JOINT |
| 14 | 803090605 | 插销缸 | SWING OUT PIN CYLINDER |

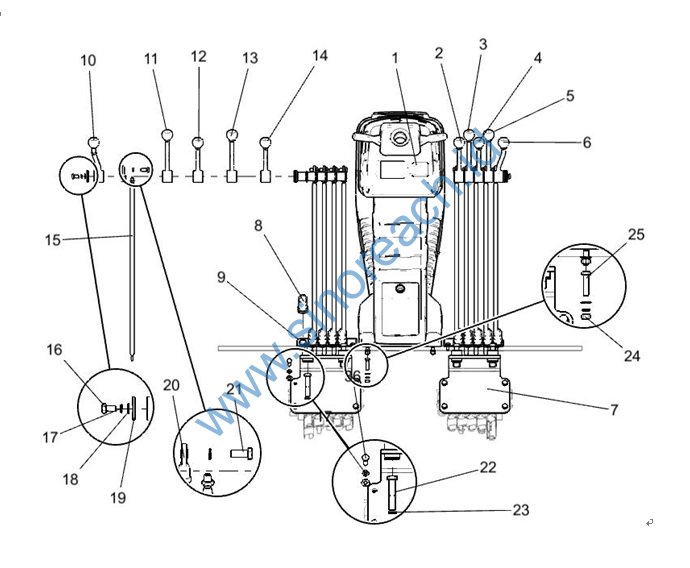

1 380906536 操纵台总成 CONSOLE ASSEMBIY
2 380603368 铲刀摆动手柄 RIGHT
JOYSTICK 1
3 380603376 铰接转向手柄 RIGHT
JOYSTICK 2
4 380603375 前轮倾斜手柄 RIGHT
JOYSTICK 3
5 380603377 前推土器升降手柄 RIGHT JOYSTICK 4
6 380603373 右铲刀升降手柄 RIGHT
JOYSTICK 5
7 380603079 多路阀安装板 MOUNTING PLATE
8 380603072 橡胶套 RUBBER SLEEVE
9 380603076 覆盖板 OVERLAY
PLATE
10 380603372 左铲刀升降手柄 LEFT
JOYSTICK 1
11 380603369 后松土器升降手柄 LEFT JOYSTICK 2
12 380603374 铲刀伸出手柄 LEFT
JOYSTICK 3
13 380603367 铲土角变换手柄 LEFT
JOYSTICK 4
14 380603378 铲刀回转手柄 LEFT
JOYSTICK 5
15 380603070 连接杆 CONNECTING
ROD
16 805046525 螺栓 M10×20 BOLT
17 805338260 垫圈 10 WASHER
18 805338278 垫圈 10 WASHER
19 380300733 挡板 BAFFLE
20 800515282 关节轴承 SI10E JOINT BEARING
21 805011330 螺栓 M10×25 BOLT
22 805006429 螺栓 M16×80 BOLT
23 805338263 垫圈 16 WASHER
24 805238371 螺母 M10 NUT
25 805046238 螺栓 M10×40 BOLT
