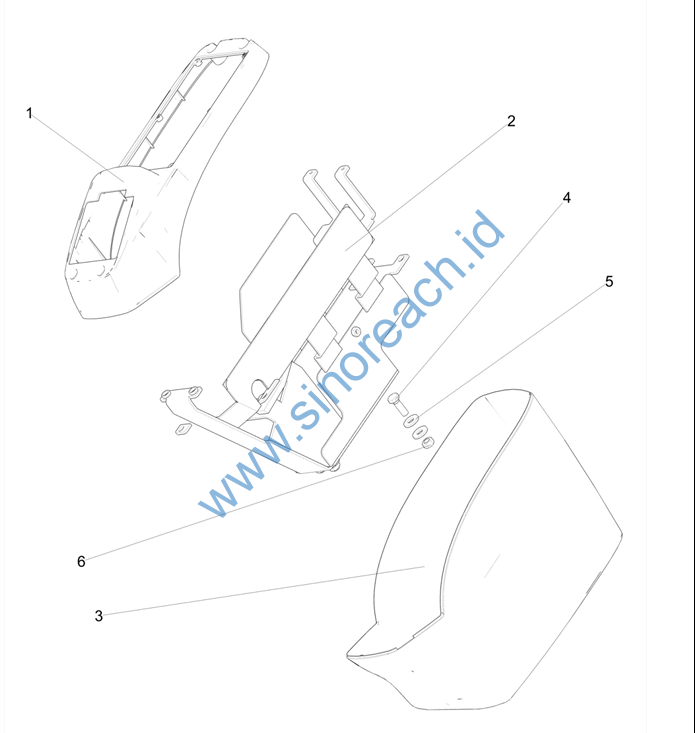

1 382300232 操纵箱上壳 Upper case of control box
2
802151189
操纵箱骨架 CONTROL
BOX SKELETON
3
802151188
操纵箱下壳 LOWER CASE OF CONTROL
BOX
4 805046473 螺栓 M10×30 BOLT
5 329900297 加厚大垫圈 GASKET
6 805238371 螺母 M10 NUT

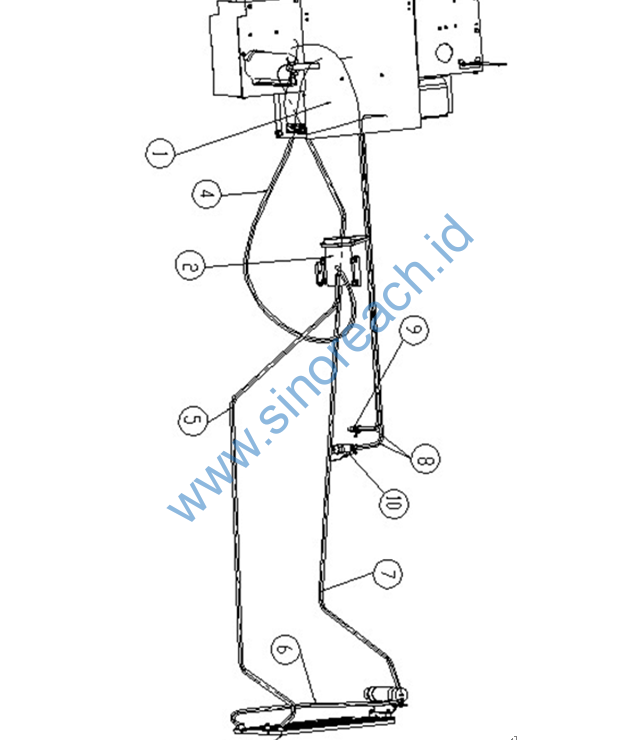

1
381100544
空调总成 AIR CONDITIONER
ASSEMBIY
2 381100544 压缩机总成 COMPRESSOR
ASSEMBIY
3 381100544 冷凝器总成 CONDENSER ASSEMBIY
4 380906555 吸气软管 SUCTIONG
HOSE
5 380906542 排气软管 EXHAUST
HOSE
6 380906551 液体软管 LPG LIQUID
HOSE
7 380906556 液体软管 LPG LIQUID
HOSE
8 胶管Φ16 RUBBER HOSE
Φ16
9 380900970 接头体 JOINT
10 800752773 球阀接头 BALL VALVE
JOINT

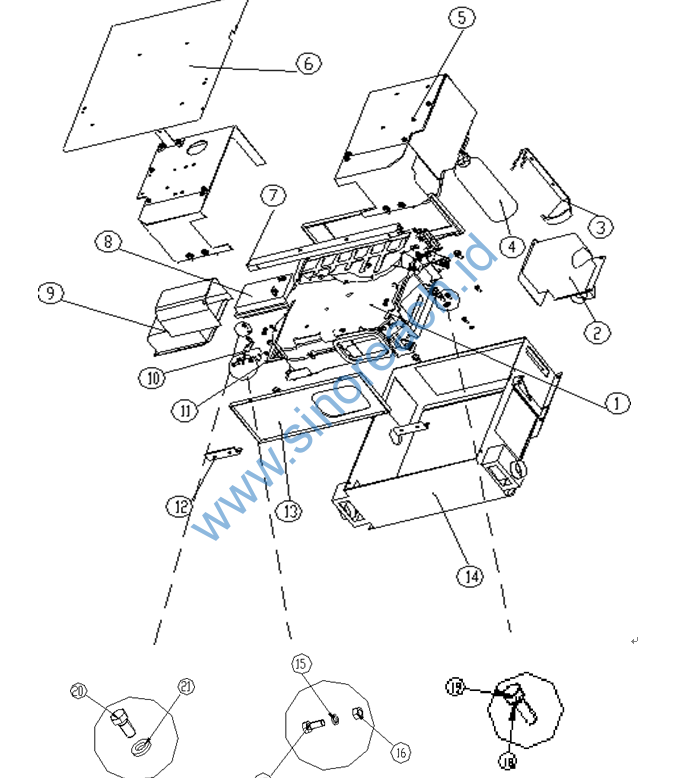

1
381100544
空调单元 AIR CONDITIONING
UNIT
2 382101156 出风仓 AIR OUTLET
3
819948838
灭火器支架 FIRE
EXTINGUISHER SUPPORT
4 819947986 灭火器 FIRE
EXTINGUISHER
5 380906553 风道盖板 AIR DUCT
COVER PLATE
6 382101175 顶盖 COVER
7 382101160 支撑板 SUPPORT
PLATE
8 380906540 外气滤网 AIR FILTER
9 380906538 进风仓 AIR INLET
10
382101147
支撑弯板 BRACED
BENDING PLATE
11 380906557 外气滤网固定板 AIR FILTER
PLATE
12
380905409
风道前角钢弯板 CORNER STEEL
CORNER PLATE
13 382101155 隔板 PARTITIONG
14 382101165 外壳 SHELL
15 805338259 垫圈 8 WASHER 8
16 805046477 螺母 M8 NUT M8
17 805046484 螺栓 M8X25 BOIT M8 X 25
18 329900303 加厚平垫圈 THICKENED
FLAT WASHER
19 805046508 螺栓 M12 BOIT M12
20 805338258 垫圈 6 WASHER 8
21 805046495 螺栓 M6 BOIT M6

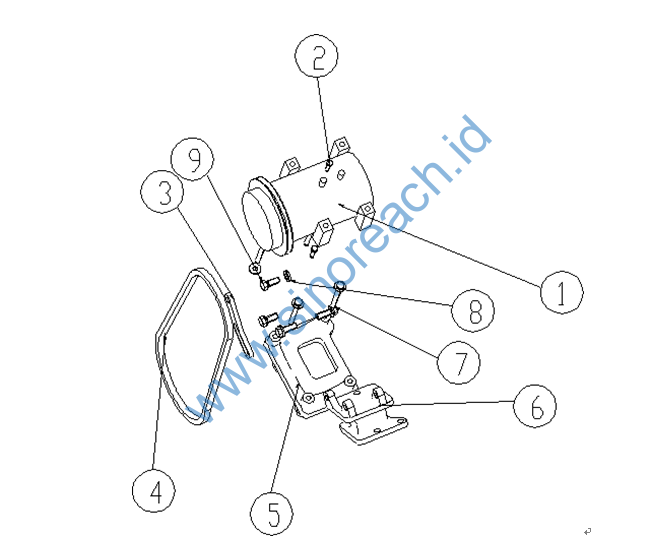

1 381100544 压缩机 COMPRESSOR 1
2 805046497 螺栓 M6×25 BOIT M6 X 25 2
3 381100543 调节垫片 ADJUSTING
GASKET 1
4 381100541 压缩机皮带 COMPRESSOR
BEIT 1
5 381100542 压缩机支架 COMPRESSOR
BRACKET 1
6 381100540 支架 BRACKET 1
7 805046522 螺栓 M8×80 BOIT M8 X 80 4
8 329900302 加厚平垫圈 THICKENED
FLAT WASHER 8
9 805046416 螺栓 M10×30 BOIT M10 X 30 4

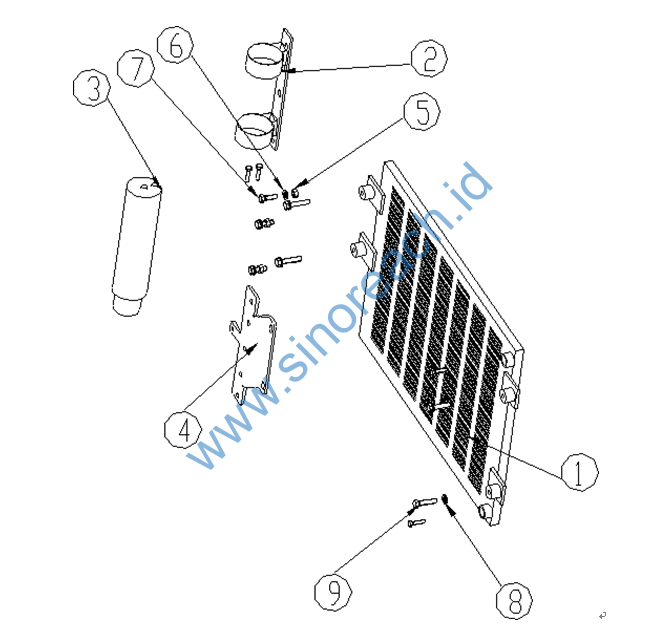

1 381100544 冷凝器 CONDENSER 1
2
382101251
储液器支架 LIQUID
STORAGE TANK BRACKET
2
3
381100544
储液罐 LIQUID
STORAGE TANK
1
4
380906546
储液罐安装板 LIQUID
STORAGE TANK INSTALLATION PLATE
1
5 805046477 螺母 M8 NUT M8 3
6 329900301 加厚平垫圈 THICKENED
FLAT WASHER 7
7 805046509 螺栓 M8×25 BOIT M8×25 3
8 805046457 螺栓 M8×35 BOIT M8×35 4
9 805046497 螺栓 M6×25 BOIT M6×25 4

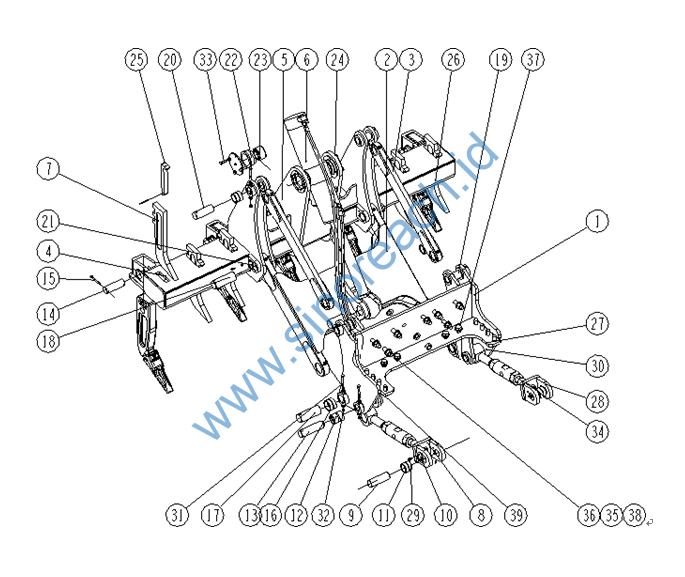

1 382300156 座架 INSTALLION
BASE
2 382300109 下拉板 PLATE
3 382300114 上拉杆 LEVER
4 382300118 齿架 RIPPER
FRAME
5 382300130 耙齿总成 RAKE ROD
6 382300167 后松液压布管 HYDRAULIC SYSTEM
7 380900903 耙齿 RAKE TEETH
8 382300166 预紧杆 PRELOADED
ROD
9 382300120 销轴Ⅳ PIN
10 382100587 固定块 PLATE
11 380603418 铜套Ⅱ COPPER SHEATHING
12 380603420 铜套 COPPER SHEATHING
13 380603414 销轴 PIN
14 382300110 销轴Ⅴ PIN
15 805600269 销 10×80 PIN
16 382300154 铜套 COPPER SHEATHING
17 382300158 销轴Ⅰ PIN
18 382300102 销轴Ⅳ PIN
19 382300112 销轴Ⅱ PIN
20 382300146 销轴Ⅲ PIN
21 382300103 固定块 PLATE
22 382300132 钢套 STEEL JACKET
23 382300152 铜套 COPPER
SHEATHING
24 382300111 外套 STEEL JACKET
25 382300119 插销 PIN
26 805639609 销 5×50 PIN
27 329900303 加厚平垫圈 FLAT WASHER
28 329900301 加厚平垫圈 FLAT WASHER
29 805046508 螺栓 M8×20 BOLT
30 805046649 螺栓 M12×100 BOLT
31 805046470 螺栓 M12×110 BOLT
32 805238367 螺母 M12 NUT
33 805006414 螺栓 M12×45 BOLT
34 801103215 油杯 M10×1 OIL CUP
35 805338299 垫圈 24 WASHER
36 805046843 螺栓 M24×110 BOLT
37 805004837 螺栓 M24×90 BOLT
38 805203192 螺母 M24 NUT
39 805046596 螺栓 M24×60 BOLT
