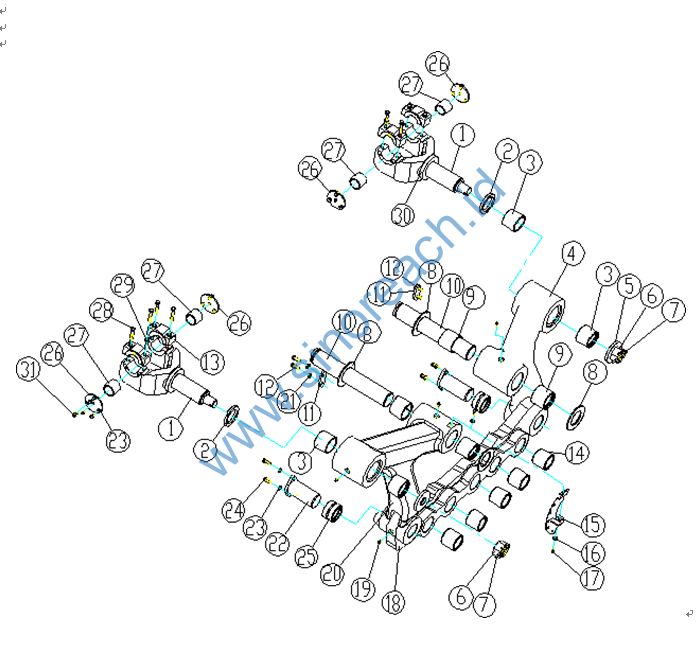

1 380602493 叉子 FORK
2 380904095 隔套 PARTITION
BUSH
3 380903676 铜套 COPPER
SHEATHING
4 380603228 右摆杆 RIGHT
PENDULUM
5 380905187 挡圈 BAFFLE
6 380900914 螺母 NUT
7 805639638 开口销 8×90 PIN8×90
8 381300477 垫片 SHIM
9 381300478 铜套 BUSHING
10 380603635 销轴 AXIS
11 381300479 挡板 BAFFLE
12 805006412 螺栓 M12×30 BOLT M12×30
13 380904092 盖 COVER
14 380603780 轴套 BUSHING
15 380603224 指示牌 INDICATOR
16 329900296 加厚大垫圈 WASHER
17 805046507 螺栓 M8×20 BOLT M8×20
18
380603738
下摆杆组件 UPPER
PENDULUM ASM
19 801100336 油杯 M10×1 GREASE CUP
20 380603223 左摆杆 LEFT
PENDULUM
21 329900303 加厚大垫圈 WASHER
22 380603222 销轴 AXLE
23 329900302 加厚大垫圈 WASHER
24 805046416 螺栓 M10×30 BOLT M10×30
25 380603217 铜套 COPPER BUSH 2
26 381600391 盖 LID 4
27 381600393 衬套 BUSH 4
28 805046642 螺栓 M12×65 BOLT M12×65 8
29 805338334 垫圈 12 WASHER 12 8
30 380904094 隔套 PARTITION
BUSH 2
31 805046524 螺栓 M10×16 BOLT M10×16 12

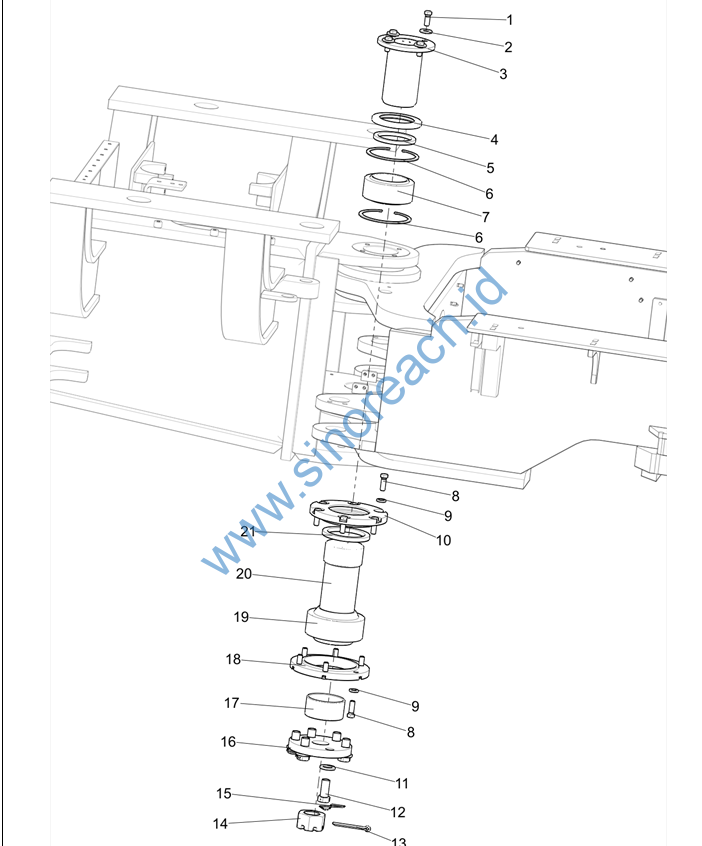

1 805046482 螺栓 M12×30 BOLT M12×30
2 329900298 垫片 WASHER
3 380904173 上铰轴 UPPER PIN
4 380900920 压盖 COVER PLATE
5 380900921 毡圈 RING SEAL
6 805407839 挡圈 130 HOLD WASHER
130
7
800500280 关 节 轴 承
GE90ES JOINT BEARING
GE90ES
8 805047080 螺栓 M12 × 1.5
×35 BOLT M12×1.5
×35
9 329900303 垫片 WASHER
10 380901044 下压盖 CAP
11 805338297 垫圈 20 WASHER 20
12 805048257 螺栓 M20 × 1.5
×45 BOLT M20×1.5
×45
13 805600080 销 8×80 PIN 8×80
14 380905147 螺母 NUT
15 380905154 钢丝Φ2.0×300 STEEL WIRE
Φ2.0×300
16 380905148 盖板 COVER PLATE
17 380905149 轴套 BOSSING
18 380900925 法兰盘 CAP
19
800515288 关 节 轴 承
GEG90ES JOINT
BEARING GE90ES
20 380905146 下铰轴 UNDER PIN
21 380900915 毡圈 RING SEAL

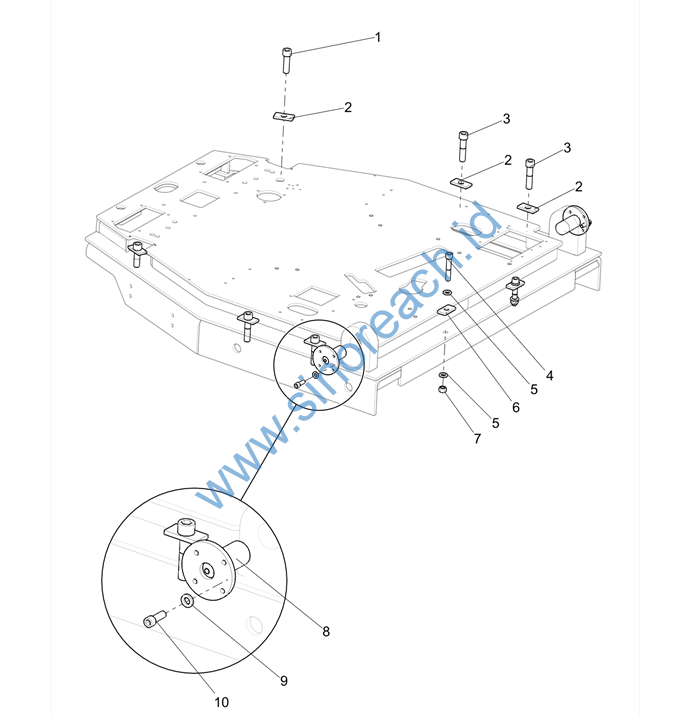

1 805140490 螺钉 M20×70 BOLT M20×70
2 380600627 大垫圈 WAS HER
3 805140698 螺钉 M20×90 BOLT
M20×90
4 805140037 螺钉 M16×90 BOLT M16×90
5 329900304 大垫圈 WAS HER
6 380401012 大垫圈 WAS HER
7 805046476 螺母 M16 NUT M16
8 380905004 销轴 PIN
9 329900303 大垫圈 WAS HER
10 805139869 螺钉 M12×35 BOLT
M12×35

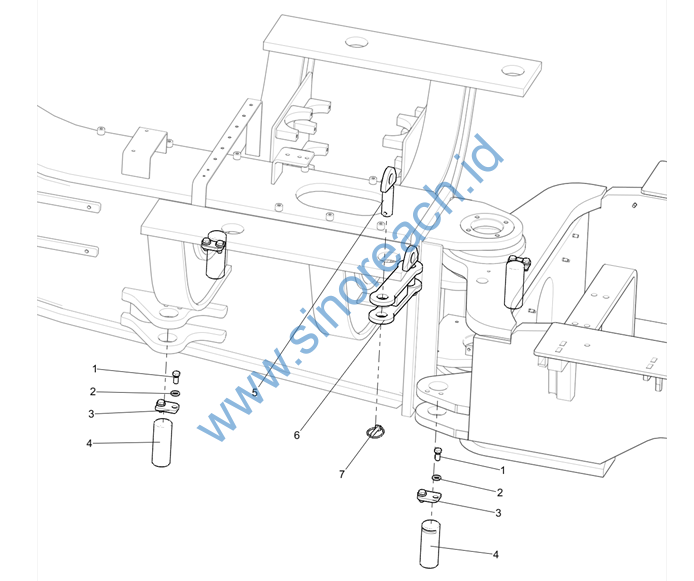

1 805046485 螺 栓 M12 ×
25(达克罗) BOLT M12×25
2 329900303 大垫圈 WAS HER
3 380900918 压板 CLAMP
4 805604514 销轴 PIN
5 380904175 插销 PIN
6 380904174 拉杆 PULL ROD
7 380901157 弹簧销 PIN

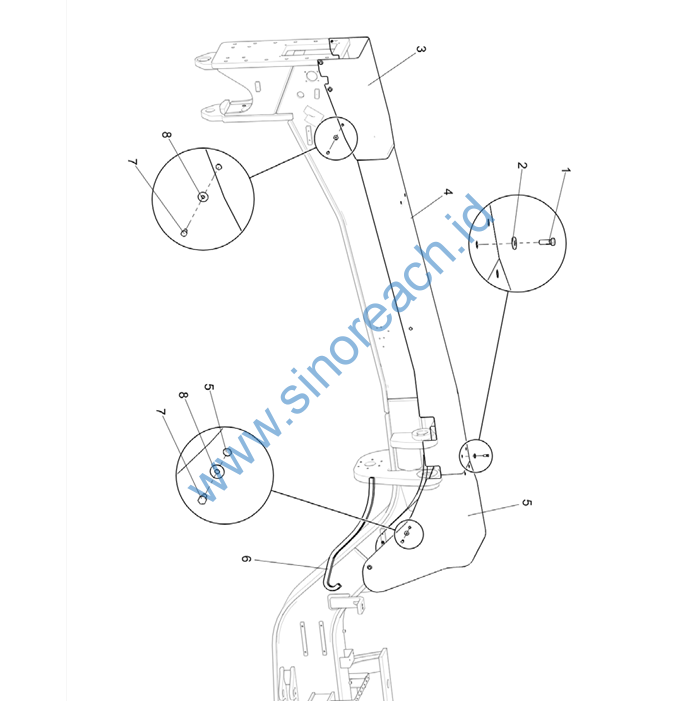

1 805046473 螺栓 M10×30 BOLT M10×30
2 380603914 垫圈 WAS HER
3 380603155 盖板Ⅰ CAP
4 380603170 盖板Ⅱ CAP
5 380603190 盖板Ⅲ CAP
6 380905666 27 号装饰条-1100 RUBBER STRIP
7 805046472 螺栓 M10×20 BOLT
M10×20
8 805338267 垫圈 10 WAS HER

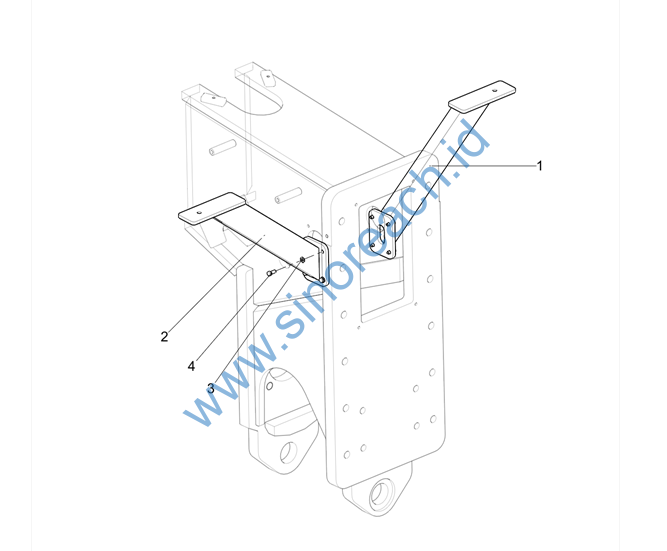

1 380400990 左前灯架 LEFT FRONT LAMPPOST
2 380400989 右前灯架 RIGHT FRONT LAMPPOST
3 805338276 垫圈 8 WAS HER
4 805046507 螺栓 M8×20 BOLT
M8×20

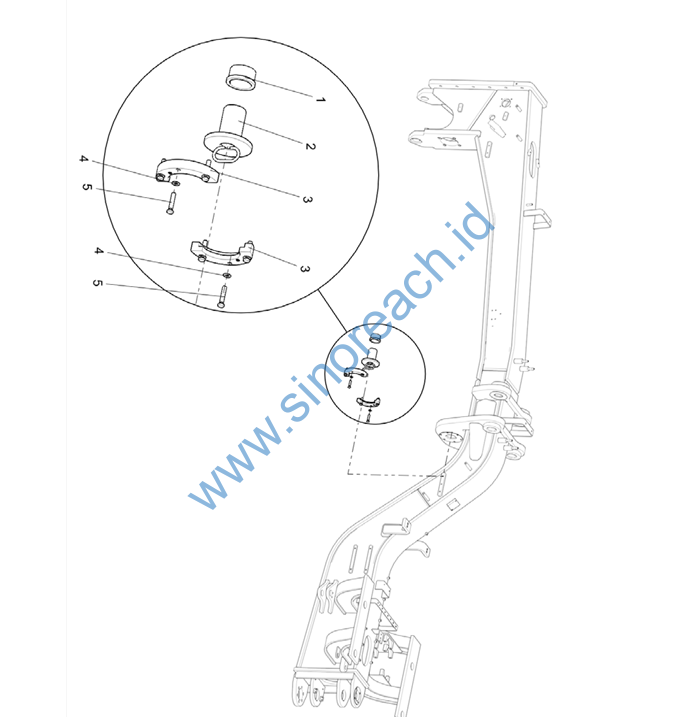

1 380603135 轴套 BOSSING
2 380603136 摆架拔销 PIN
3 380603134 半压盖 CAP
4 805338280 垫圈 12 WAS HER
5 805046555 螺栓 M12×60 BOLT
M12×60

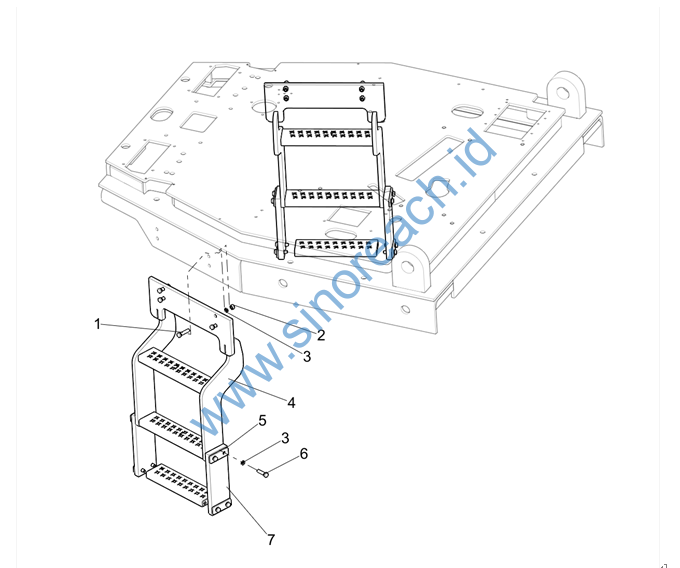

1 805046455 螺栓 M10×45 BOLT M10×45
2 805238371 螺母 M10 NUT M10
3 805338260 垫圈 10 WAS HER 10
4 380603215 梯架 LADDER
5 380300682 垫片 WAS HER
6 805046238 螺栓 M10×40 BOLT M10×40
7 380905339 橡胶带 RUBBER PLAT E
8 380300683 横踏板 PADDLE
